MIPI-60 Adapter

Product information "MIPI-60 Adapter"

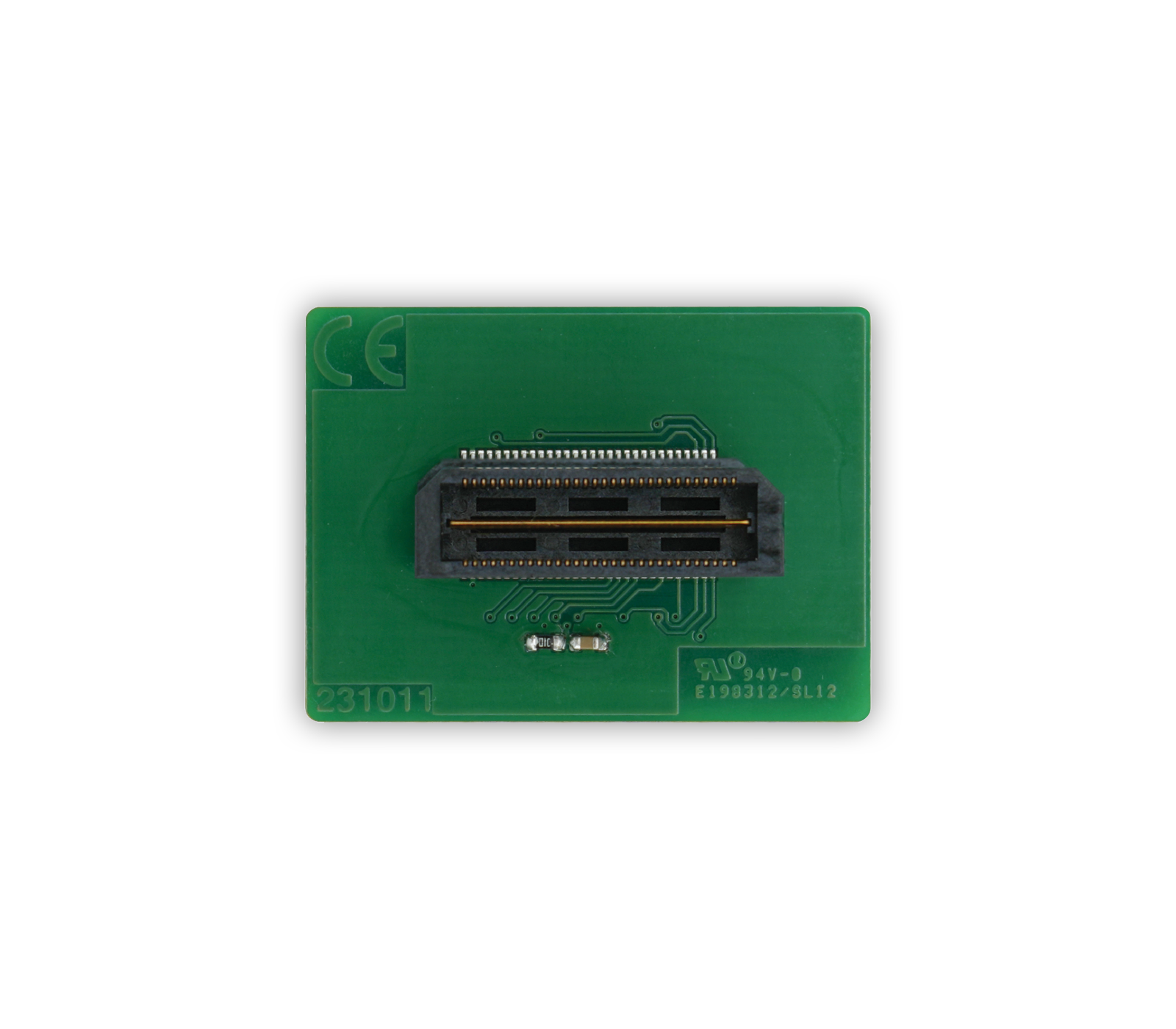

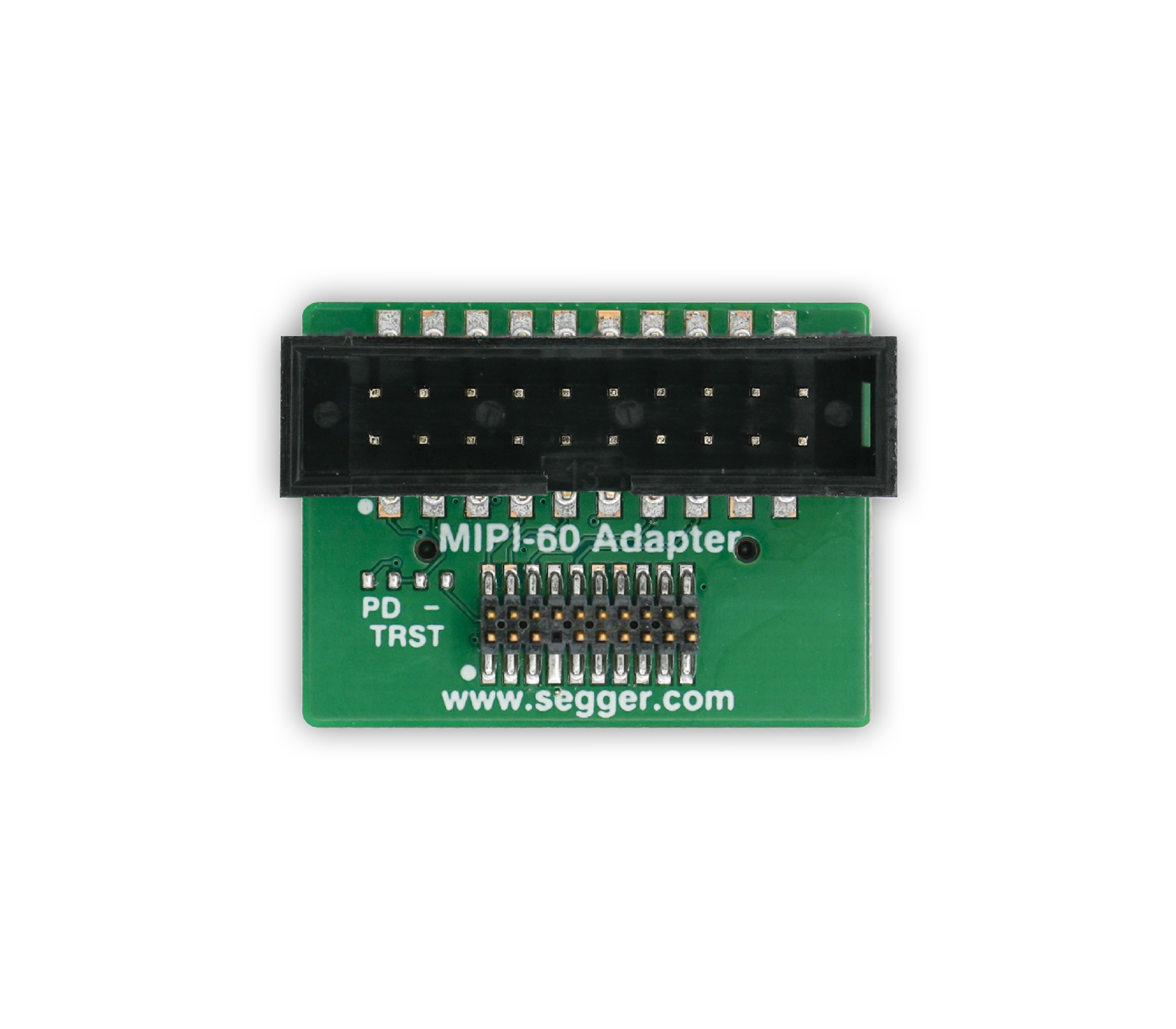

The MIPI-60 Adapter allows JTAG connections between J-Link, J-Trace or Flasher and Jacinto7 TI target hardware systems. It provides a 19-pin JTAG/SWD and Trace connector, which allows TPIU tracing with up to 4 pins, and an Arm Standard 20-pin connector.

For additional product information, please visit segger.com.

Similar products

8.06.21

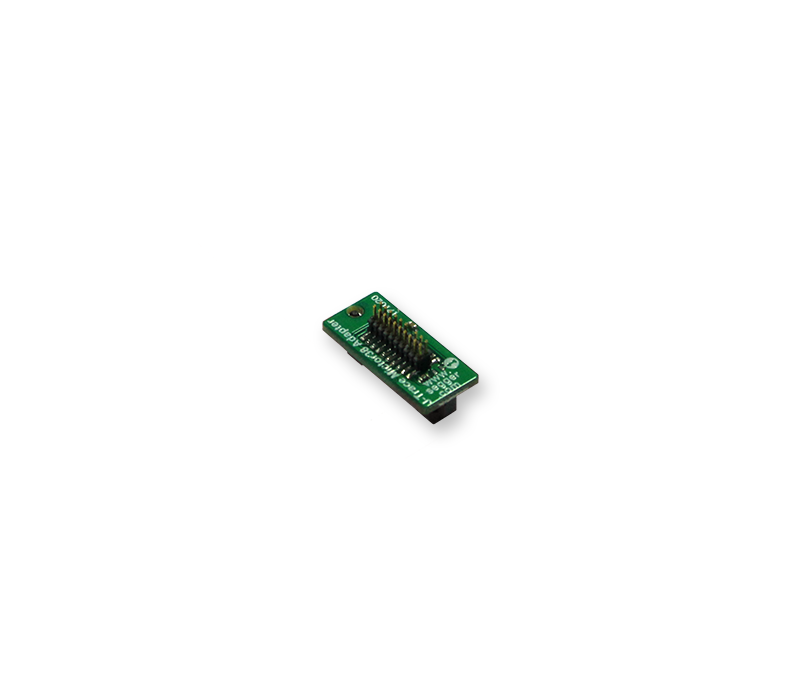

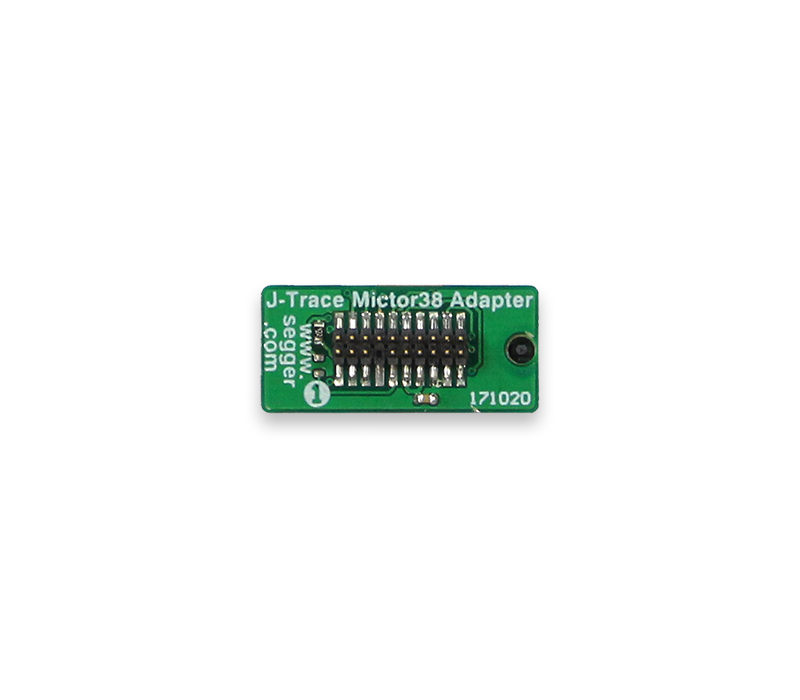

J-Trace Mictor 38 Adapter

Adapts from 20-pin .05" Cortex trace connector to 38 pin Mictor connector.The pin out follows the single target connector pinout specification as defined in the ARM "ETM Architecture Specification".For additional product information, please visit segger.com.

€148.00*

Details

8.06.03

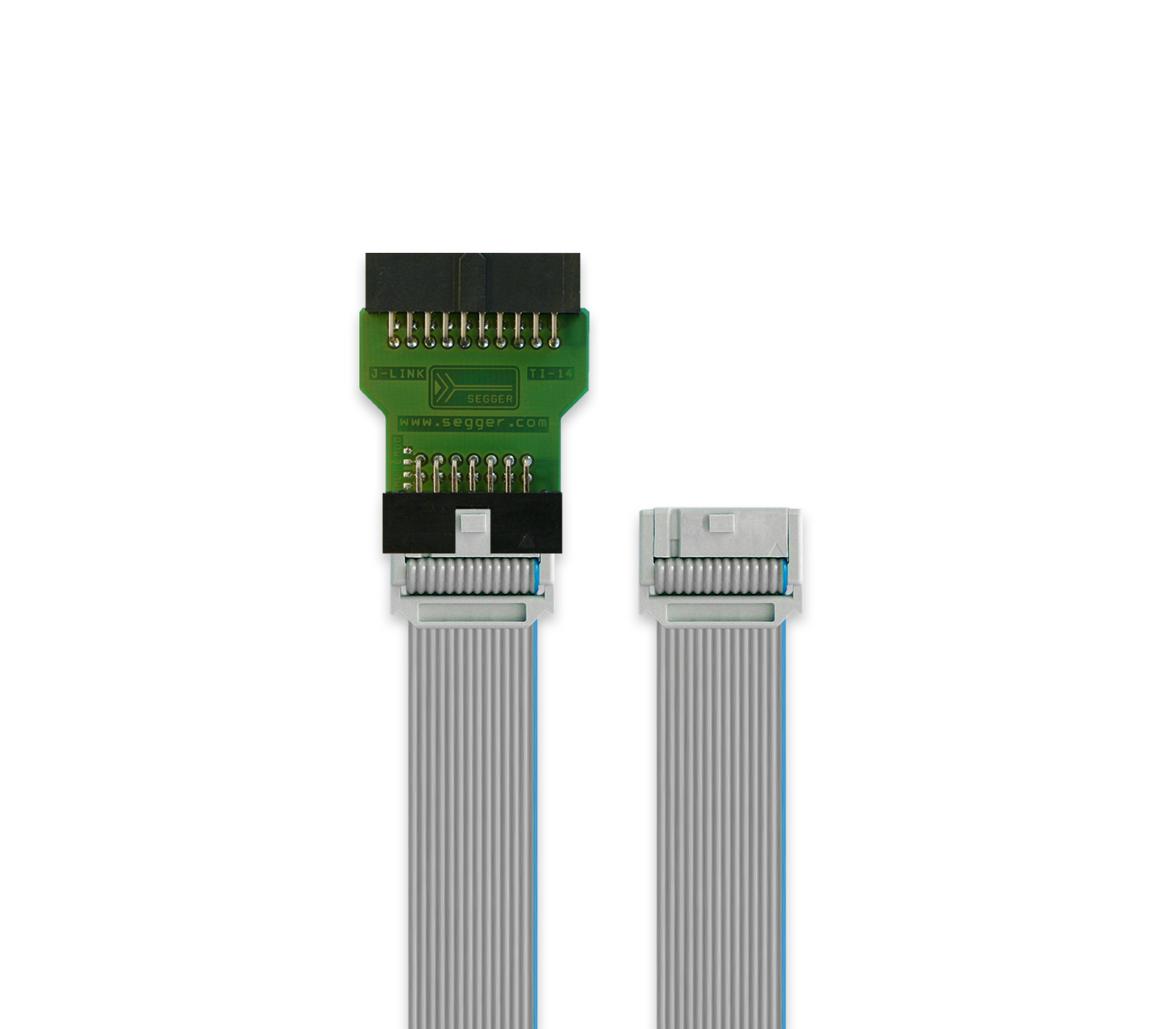

14-Pin TI Adapter

Adapts from .1" 20-pin Standard connector to 14-pin TI connector incl. 14-pin cableFor additional product information, please visit segger.com.

€49.00*

Details

8.06.07

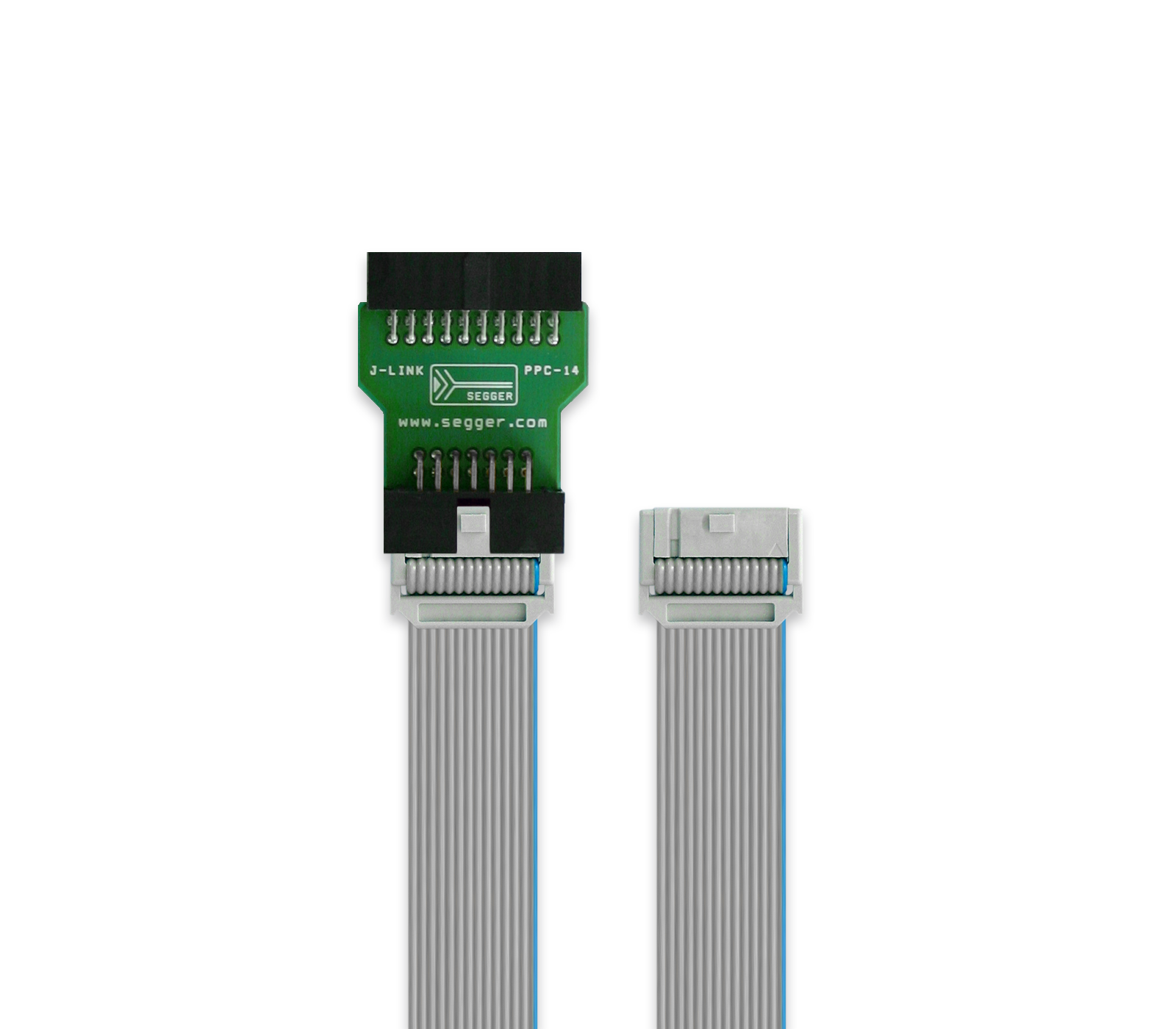

PPC 14-Pin Adapter

Adapts from 20-pin, 0.1 inch Standard connector to 14-pin, PPC connector incl. 14-pin cableAdditional Product Information on segger.com

€49.00*

Details

8.06.09

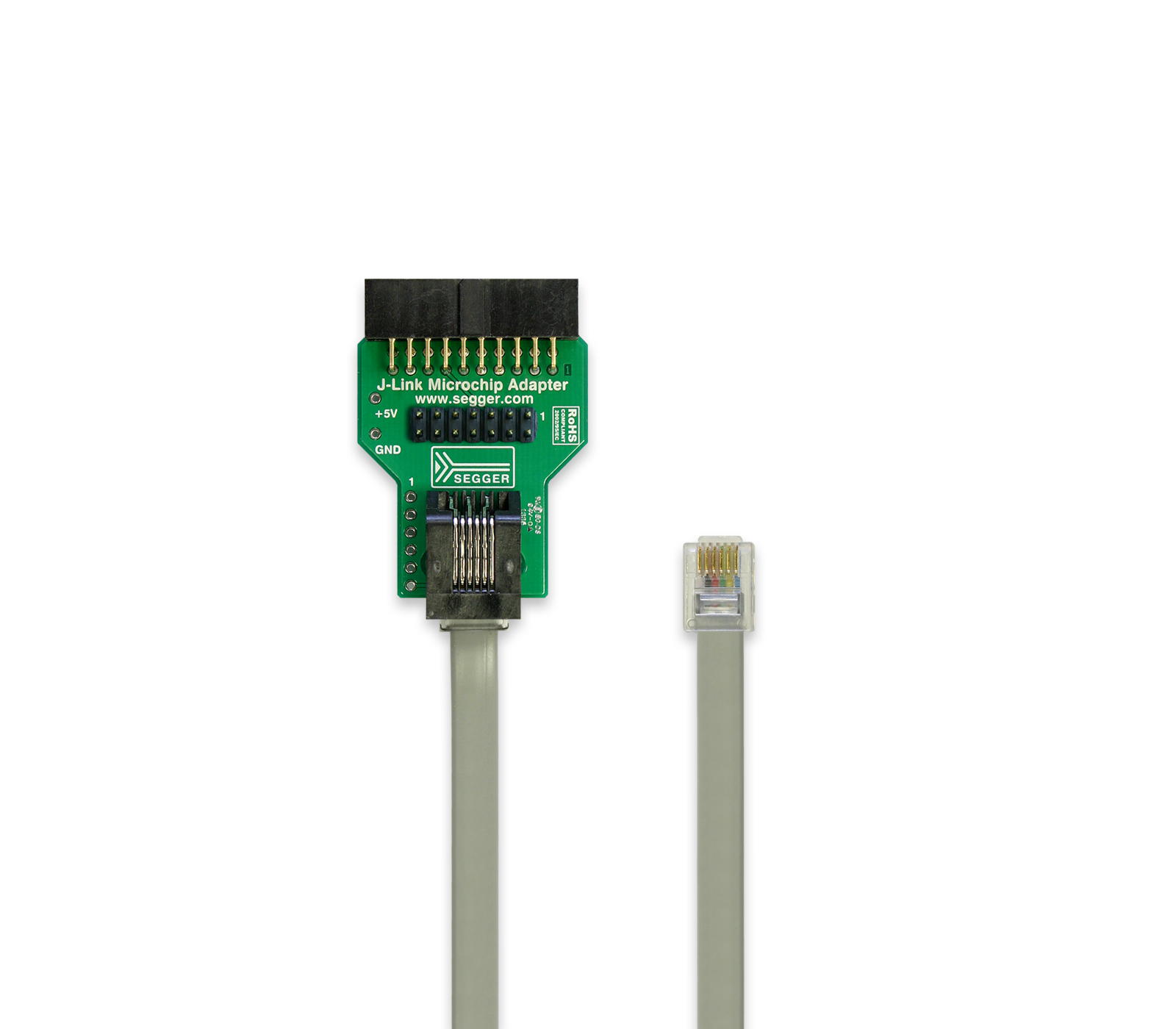

Microchip LVP Adapter

Adapts from the standard J-Link 20-pin 0.1" target connector to Microchip RJ11 modular debug connector. Incl. 6-pin RJ11 modular connector cable.For additional product information, please visit segger.com.

€49.00*

Details

8.06.19

Xilinx Adapter

Adapts from the standard J-Link 20-pin 0.1" target connector to Xilinx 14 pin 2 mm connector (comp. Platform Cable USB II).Incl. 14 pin 1 mm ribbon cableFor additional product information, please visit segger.com.

€49.00*

Details

8.06.24

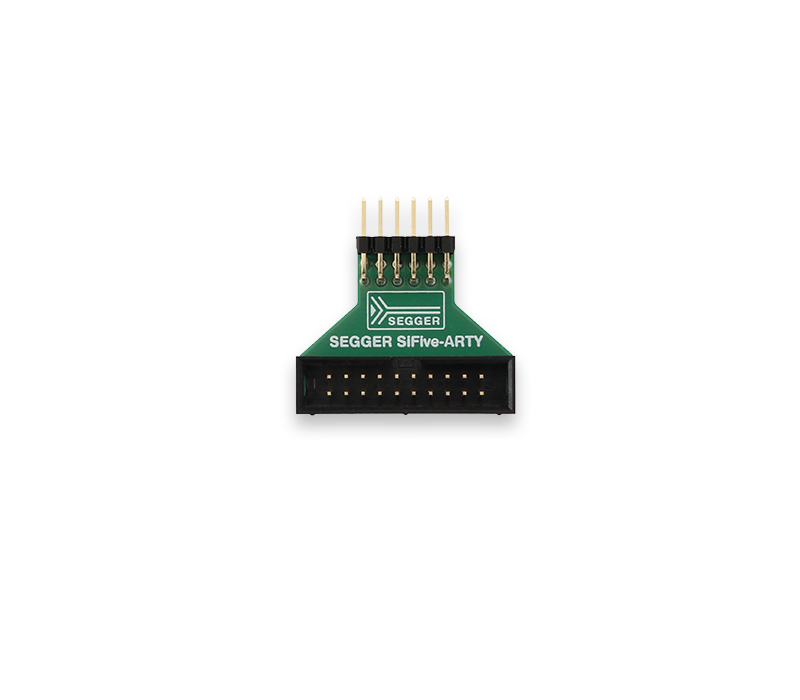

SiFive-ARTY Adapter

The SEGGER SiFive-ARTY Adapter allows debug connections between J-Link and the ARTY board running SiFive RISC-V core bitstreams. The ARTY board provides several identical headers where the JD header is used as the debug connector, when running SiFive RISC-V bitstreams on the ARTY board.For additional product information, please visit segger.com.

€49.00*

Details

8.06.33

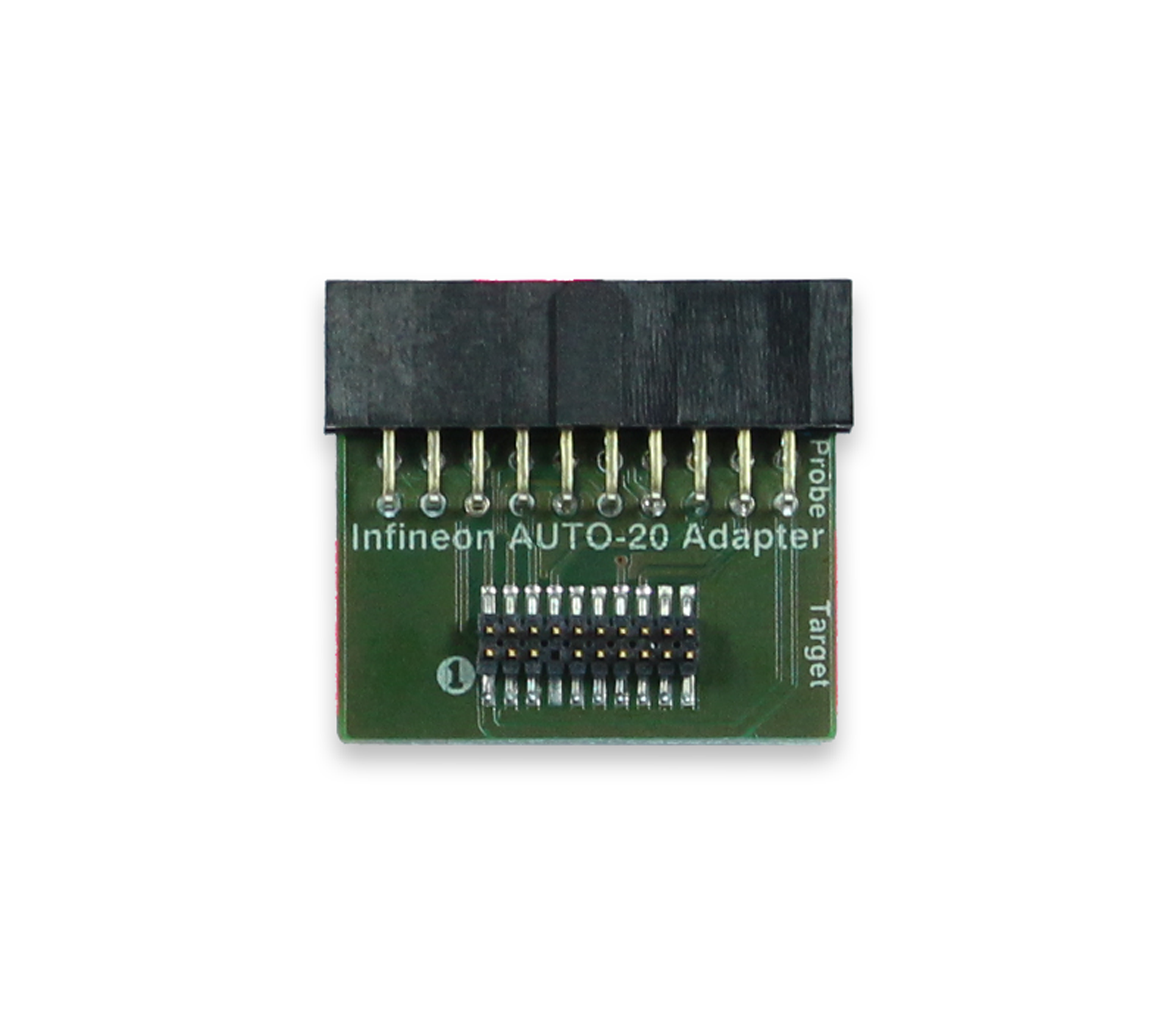

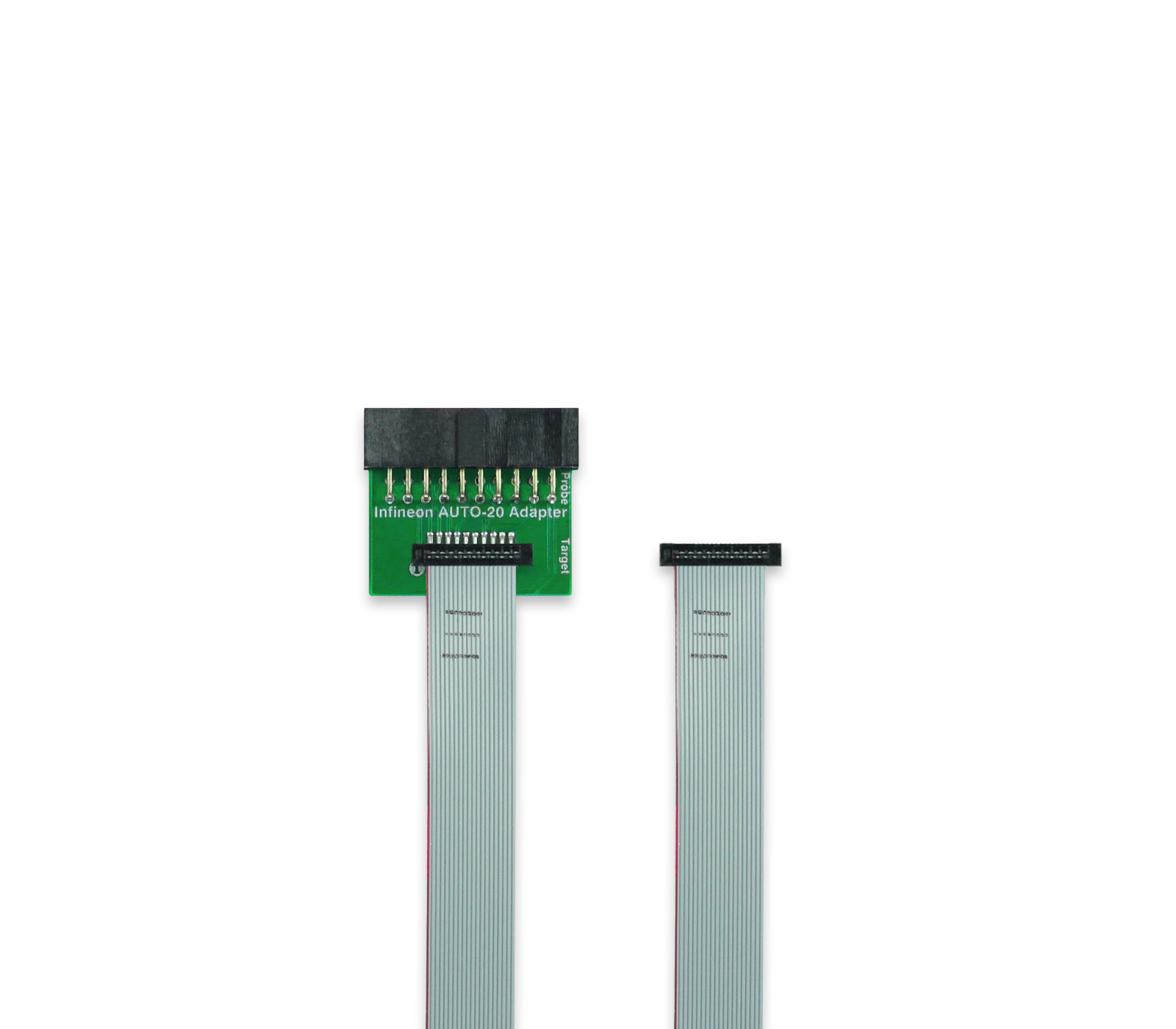

Infineon AUTO-20 Adapter

The SEGGER Infineon AUTO-20 Adapter allows a JTAG connection to a target hardware system, which has an Automotive Connector. It adapts from the 20-pin 0.1'' JTAG connector to a 19-pin 0.05'' Samtec FTSH connector.The SEGGER Infineon AUTO-20 Adapter can be used to connect the Flasher to Infineon AURIX™ -TC3xx microcontrollers. It may also be used to connect the Flasher to a different target as far as the target connector uses the same pinout as shown.For additional product information, please visit segger.com.

€49.00*

Details

8.06.35

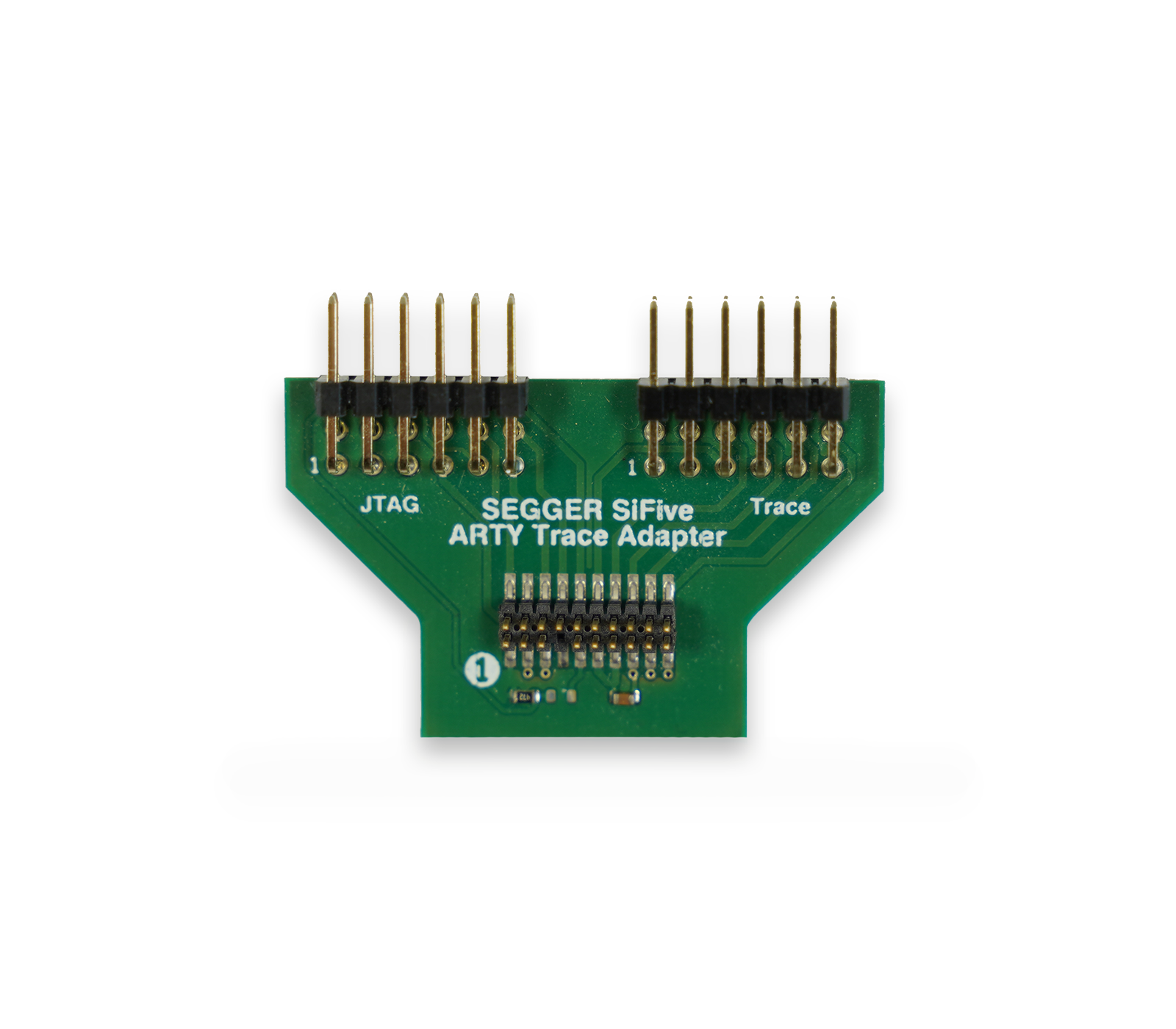

SiFive-ARTY Trace Adapter

The SiFive-ARTY Trace Adapter allows debug and trace connections between the J-Trace PRO and the ARTY board running SiFive RISC-V core bitstreams.The ARTY board provides several identical headers where the JD header is used as the debug connector and JC header as the trace connector, when running SiFive RISC-V bitstreams on the ARTY board that have trace enabled.For additional product information, please visit segger.com.

€98.00*

Details

8.06.01

RX Adapter

Adapts from .1" 20-pin Standard connector to 14-pin RX600 JTAG connector incl. .1" 14-pin cableFor additional product information, please visit segger.com.

€98.00*

Details

8.06.06

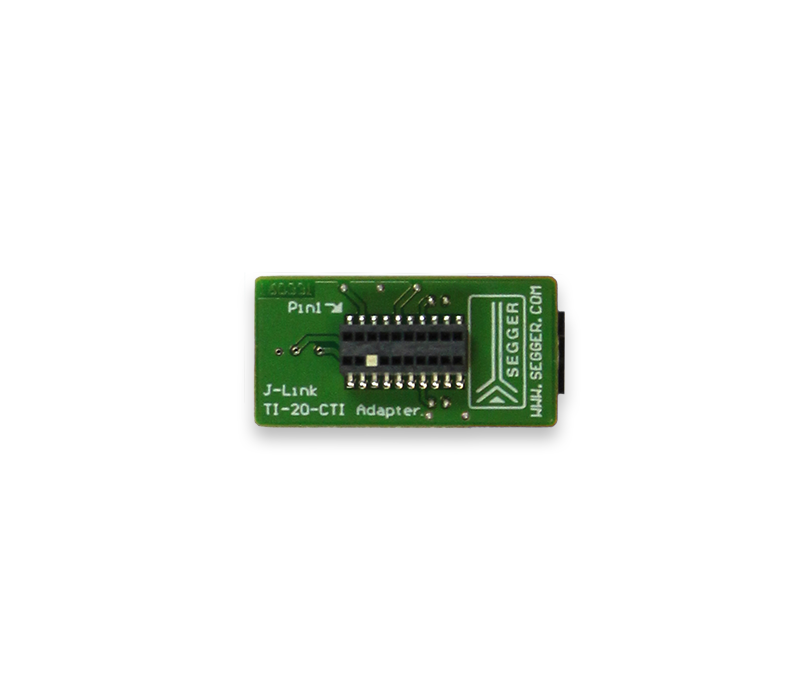

TI-CTI-20 Adapter

Adapts from the standard J-Link 20-pin 0.1" target connector to TI CTI-20 connector. For additional product information, please visit segger.com.

€68.00*

Details

8.06.08

J-Link Mictor 38 Adapter

Adapts from the standard J-Link 20-pin 0.1" target connector to Mictor 38-Pin connector.For additional product information, please visit segger.com.

€148.00*

Details

8.06.10

RX FINE Adapter

Adapts from 20-pin, 0.1‘‘ standard J-Link connector to 14-pin, 0.1" RX FINE connector. Incl. 14-pin cable.For additional product information, please visit segger.com.

€49.00*

Details

Product photo RL78 14-Pin Programming Adapter with SEGGER Flasher PRO

8.06.20

RL78 Adapter

Adapts from the standard J-Link 20-pin 0.1" target connector to Renesas 14-pin E1 connectorFor additional product information, please visit segger.com.

€49.00*

Details

MIPI-60 Adapter
