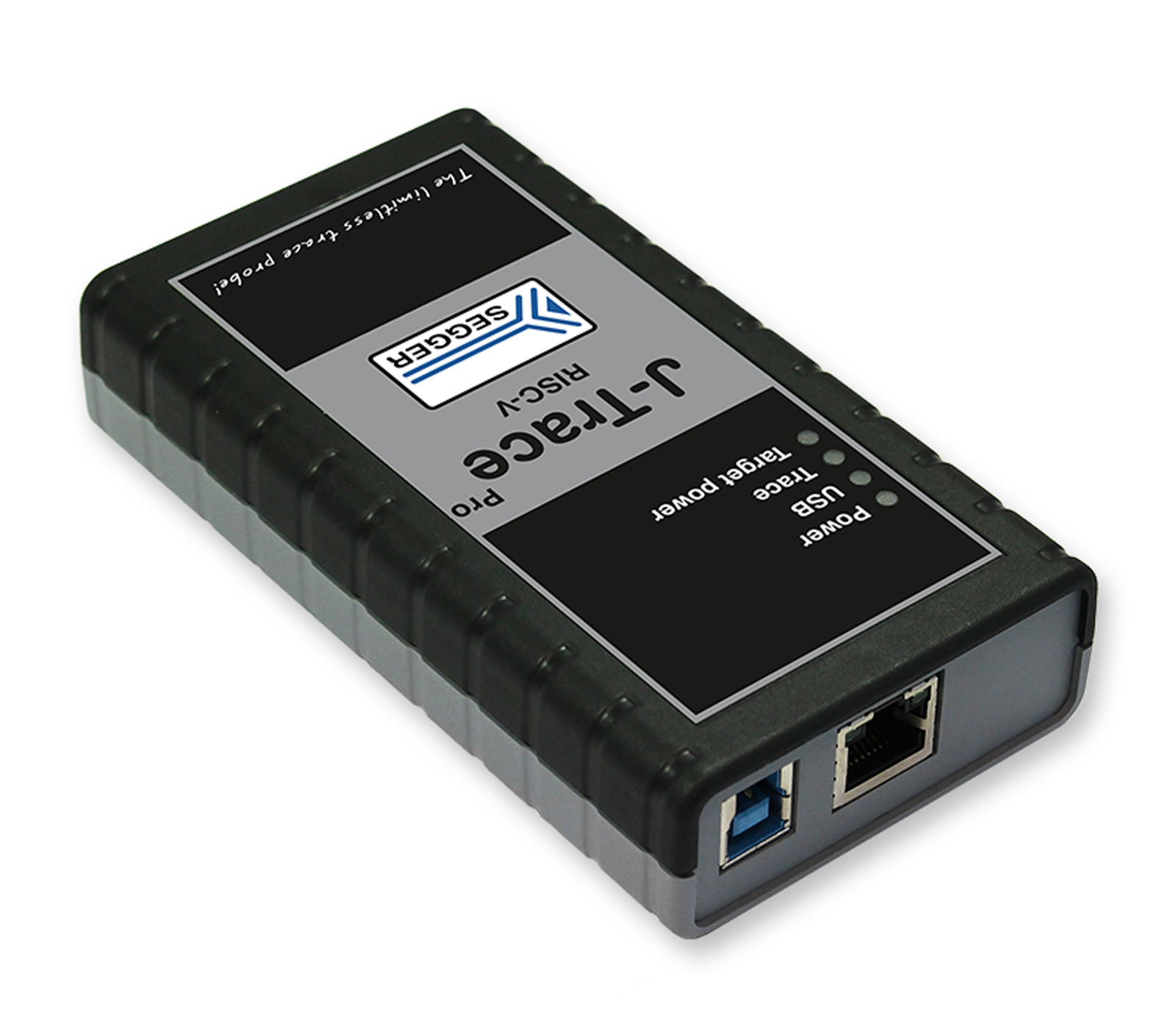

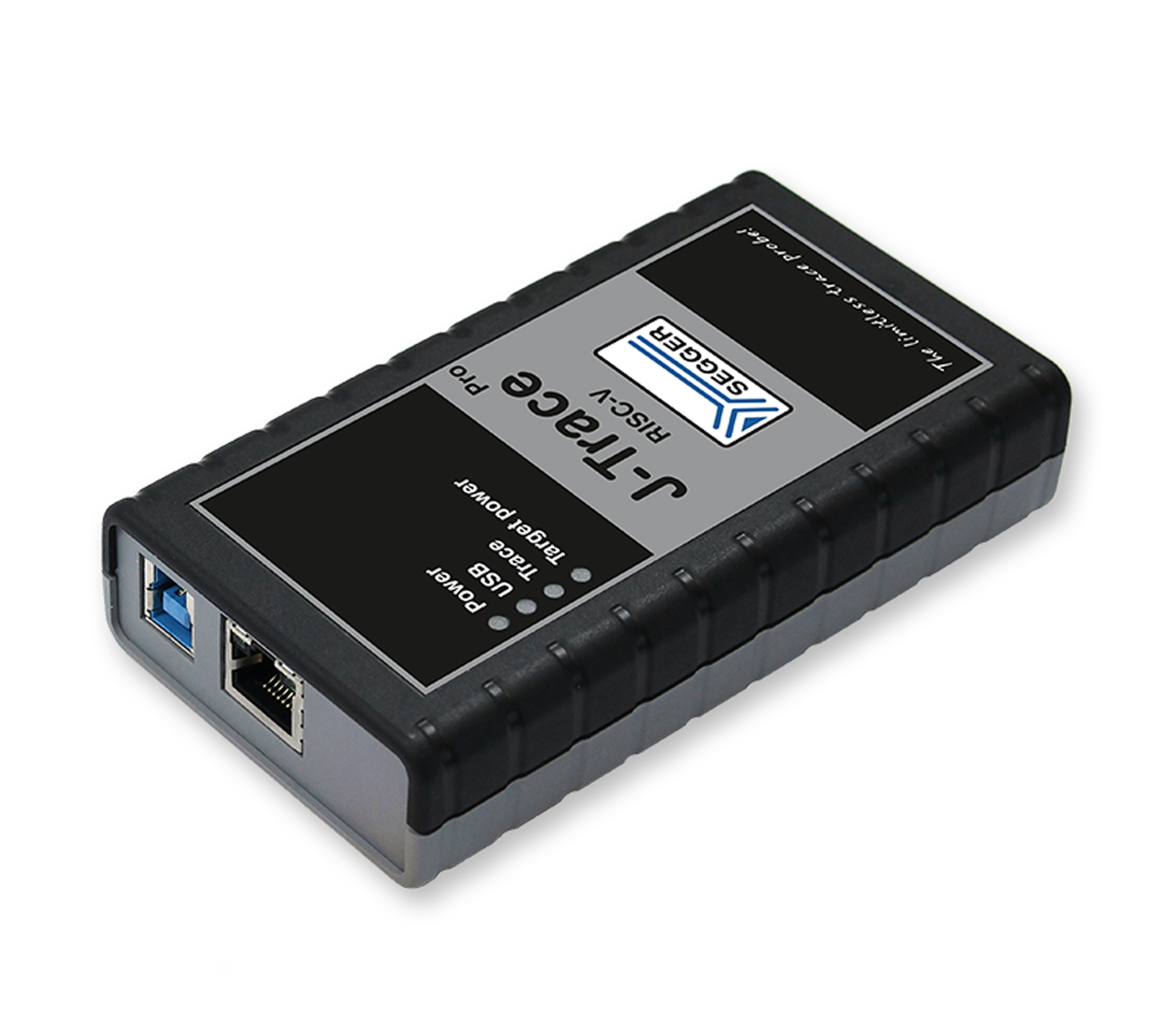

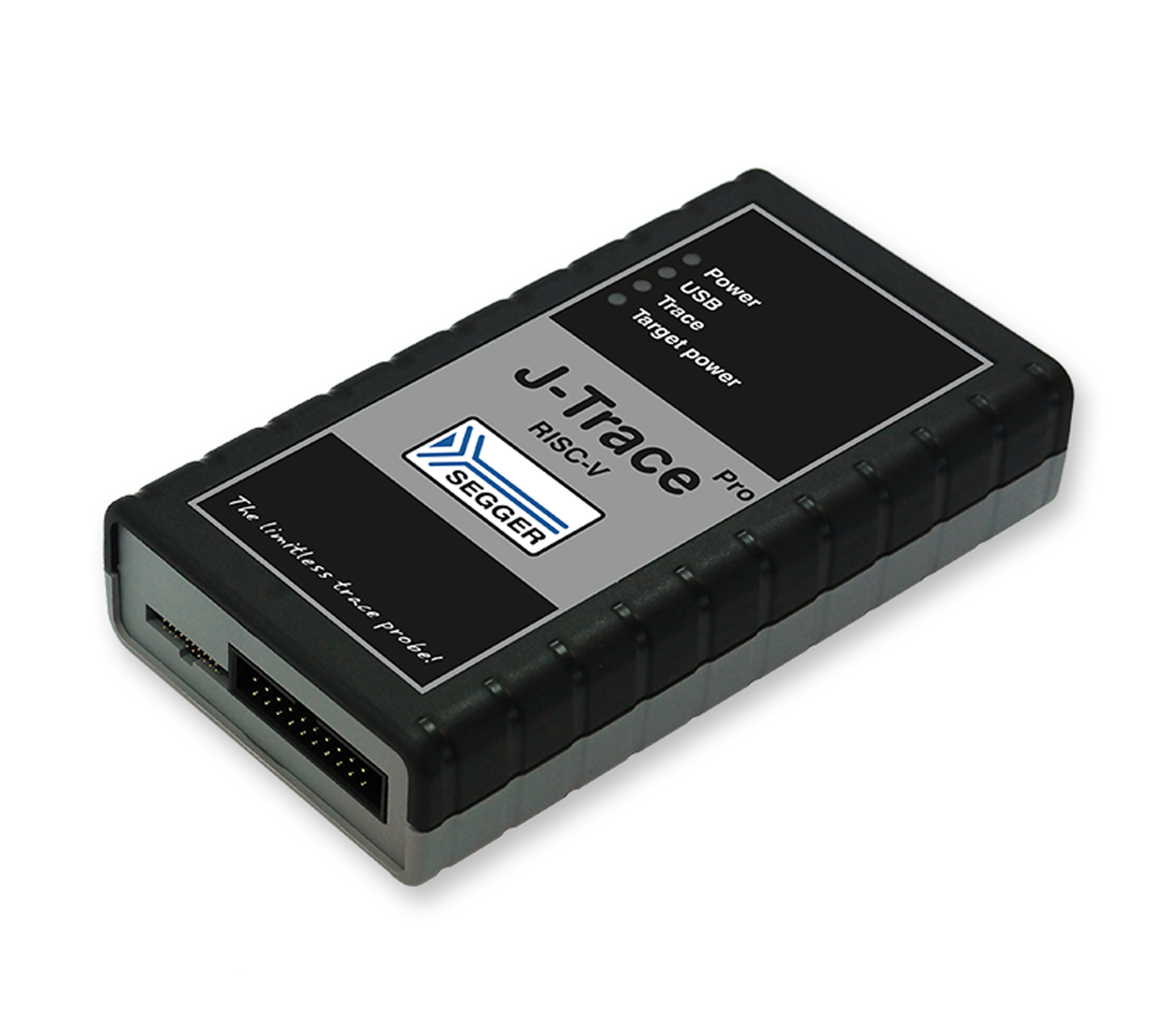

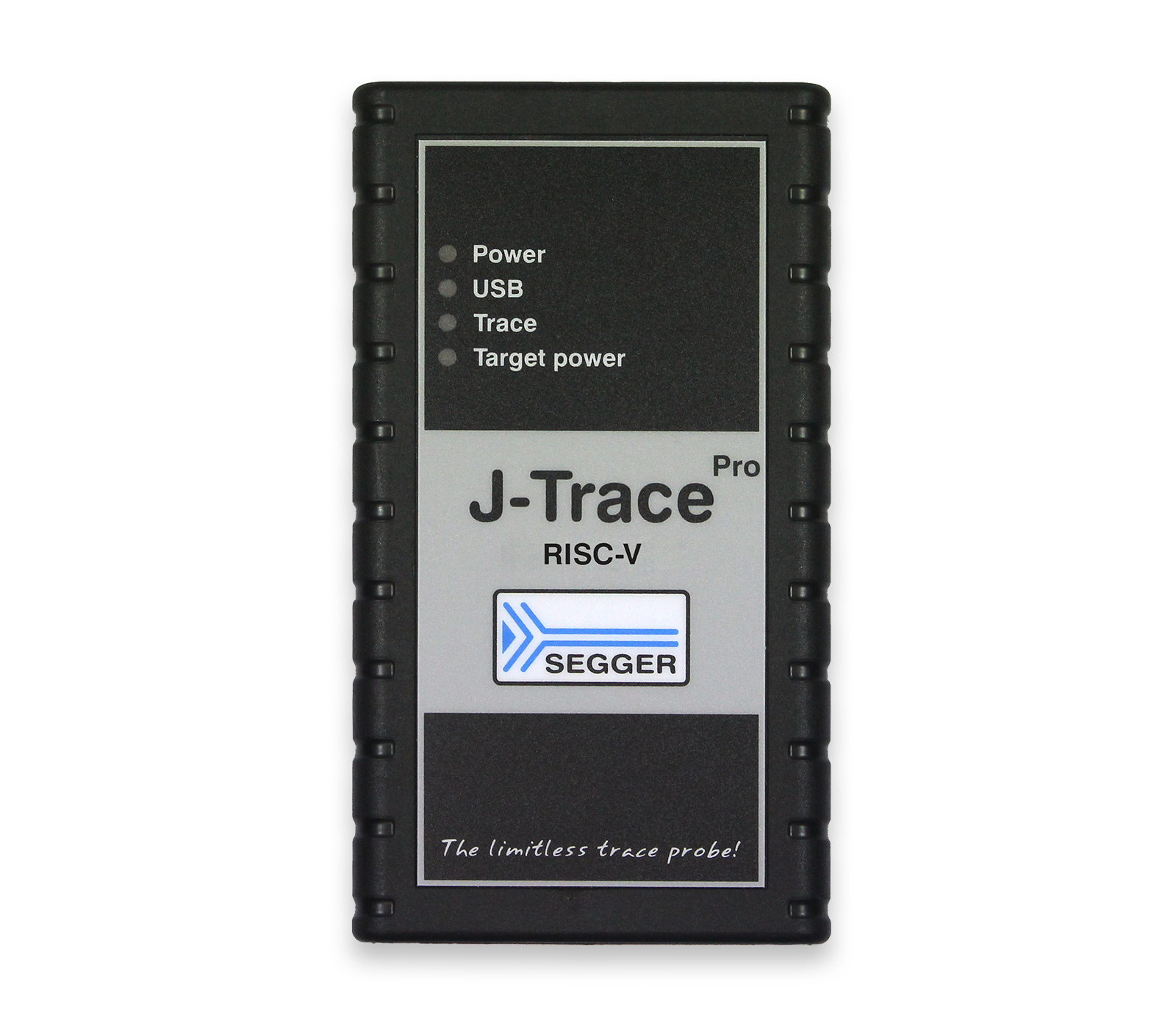

J-Trace PRO RISC-V

J-Trace PRO for RISC-V-based microcontrollers supports tracing on a wide range of RISC-V cores.

€1,980.00*

Prices excl. VAT plus shipping costs

Available, delivery time: 1-2 days

Support options

Basic (12 months)

Extended Coverage (+12 months) +€248.00

Extended Coverage (+24 months) +€398.00

Part number: 8.22.00

Suitable accessories

Adapters

SiFive-ARTY Trace Adapter

€98.00*

Available, delivery time: 1-2 days

MIPI-60 Adapter

€98.00*

Available, delivery time: 1-2 days

Software add-ons

J-Link DSK

€1,980.00*

Available, delivery time: 1-2 days

J-Link DSK – extension

€980.00*

Available, delivery time: 1-2 days

Flasher

Flasher PRO

€998.00*

Available, delivery time: 1-2 days

Product information "J-Trace PRO RISC-V"

Get the J-Trace PRO RISC-V, the superspeed trace probe that provides support for RISC-V-based microcontrollers.

With its superspeed USB 3.0 interface, J-Trace PRO RISC-V enables continuous streaming trace via USB with full trace clock. This lifts the limits from internal buffers, slowing data transmission to provide the insights a developer needs to optimize code.
With J-Trace PRO, complete traces can be captured over long periods. This enables the recording of infrequent, hard-to-reproduce bugs. It is particularly helpful when the program flow ‘runs off the rails’ and stops in a fault state.

SuperSpeed USB 3.0 driven debug probe supporting unlimited streaming trace for RISC-V devices, 64 MB on-board trace buffer. Test

Up to 4.0 MB/s download speed

Includes:

J-Flash / J-Flash SPI

J-Link Unlimited Flash Breakpoints

Ozone - The J-Link Debugger

Monitor mode

Further advantages
It also supports extended trace features, such as code coverage (so engineers have visibility over which parts of the application code have been executed) and execution profiling (providing visibility as to which instructions have been executed and how often—so hotspots can be addressed and optimization opportunities identified).

Package content

J-Trace PRO trace probe
.05" 20-pin debug & trace cable
.1" 20-pin ribbon cable (18 cm)
USB 3.0 cable

Includes free software updates and 1 (one) year of Basic support. Beyond that, SEGGER's Extended Coverage gives you the option to extend hardware warranty and Basic support for one additional year (+12 months) or two additional years (+24 months). These options are only available at the time of purchase. Adding it at a later date is not possible.

For additional product information, please visit segger.com.

Host Interface:	Ethernet, USB
Software Features:	Flash Download, GDB Server, J-Flash / J-Flash SPI, Ozone, RDDI, RDI, Real-Time Transfer (RTT), Unlimited Flash Breakpoints
Target Interface:	JTAG, SWD, SWO, cJTAG
Target Interface Speed:	High (4 MB/s)
Trace Interface:	ETB Trace, ETM Trace, Unlimited Streaming Trace + Live Analysis

Similar products

Bestseller

8.24.00M

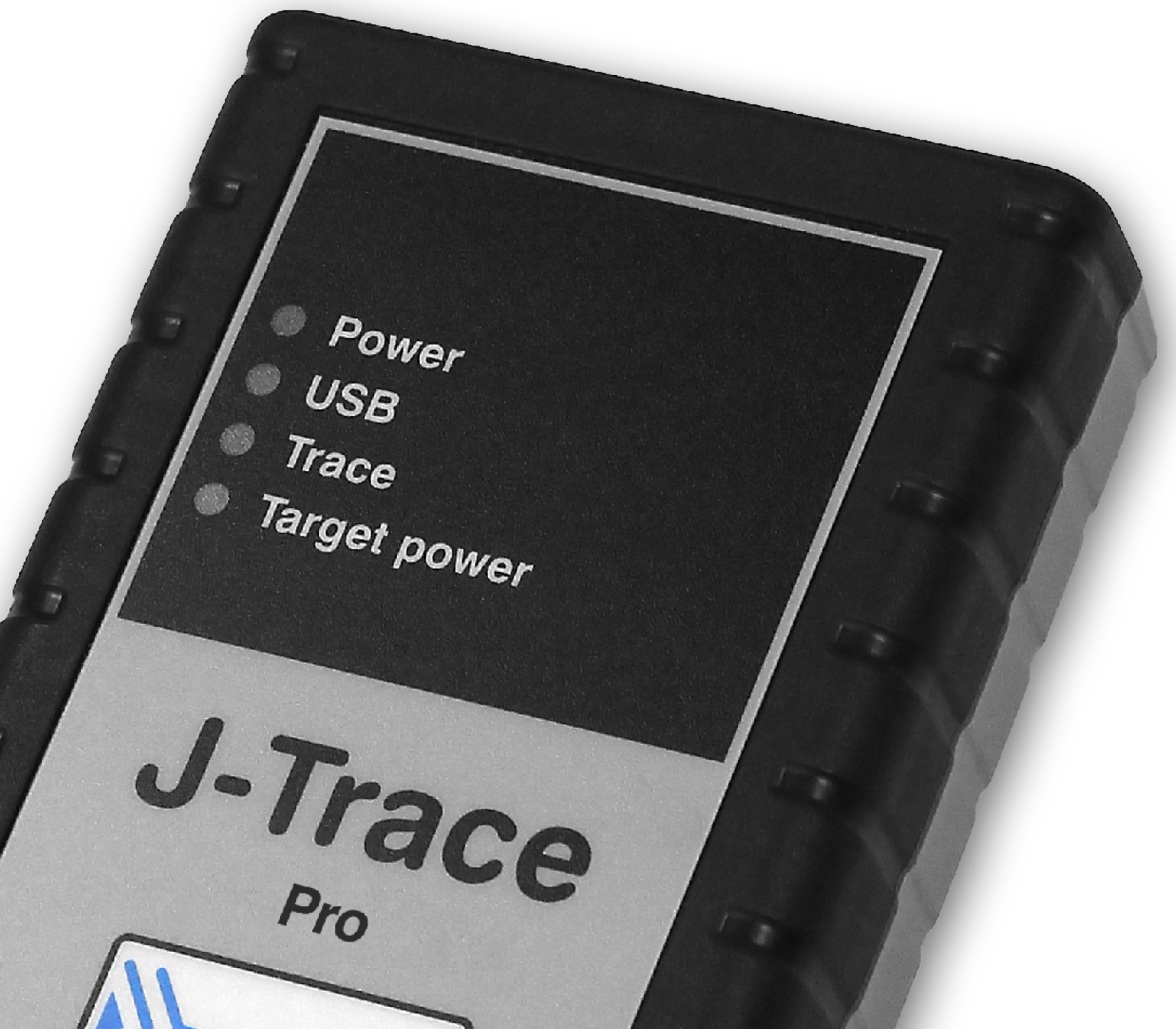

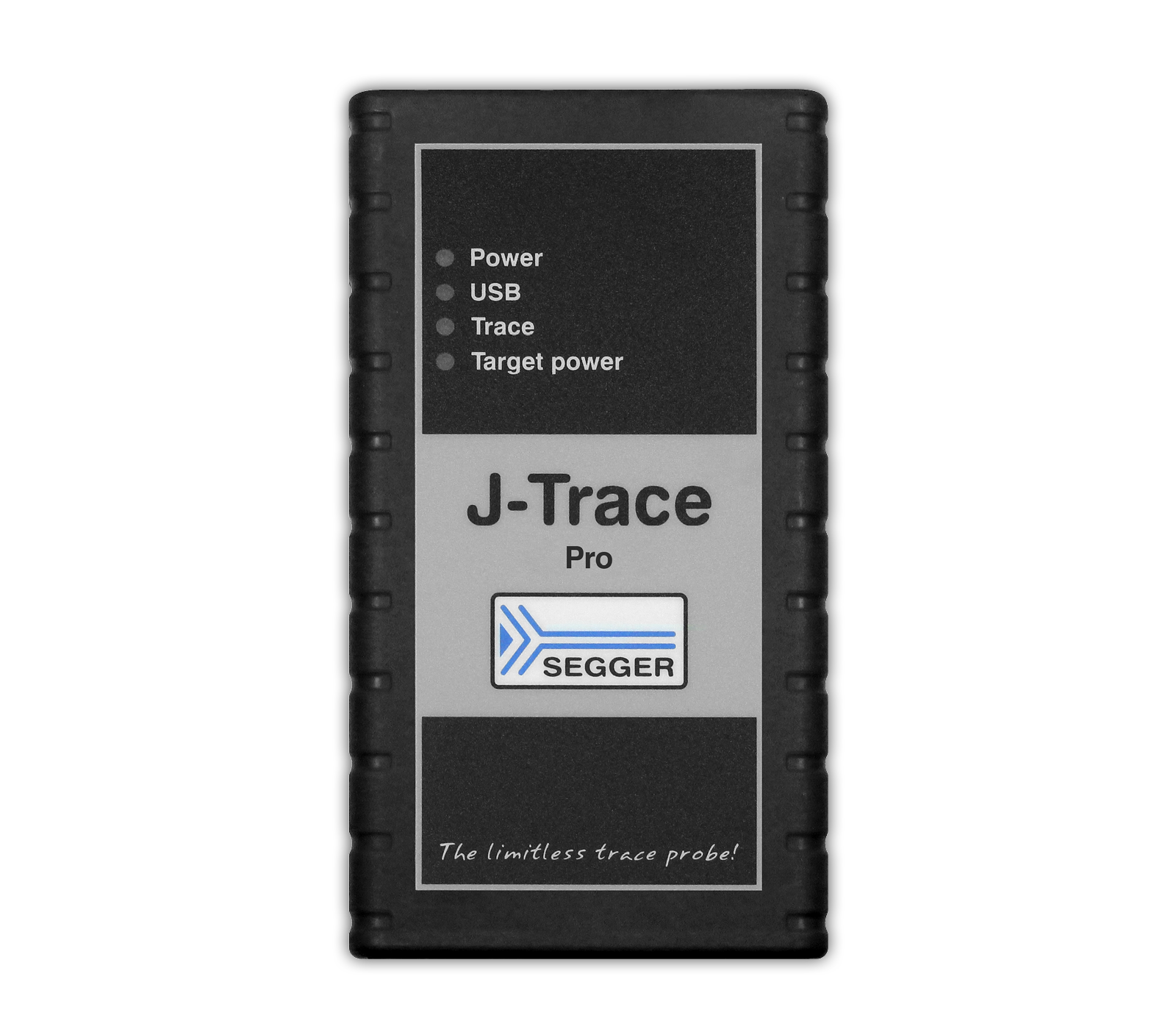

J-Trace PRO

Get the J-Trace PRO, the superspeed trace probe that is designed to support the advanced tracing features of all popular cores and architectures. With its superspeed USB 3.0 interface, J-Trace PRO enables continuous streaming trace via USB with full trace clock. This lifts the limits from internal buffers, slowing data transmission to provide the insights a developer needs to optimize code. With J-Trace PRO, complete traces can be captured over long periods. This enables the recording of infrequent, hard-to-reproduce bugs. It is particularly helpful when the program flow ‘runs off the rails’ and stops in a fault state. SuperSpeed USB 3.0 driven debug probe supporting unlimited streaming trace for Cortex-M, Cortex-R, Cortex-A, and RISC-V devices, 64 MB on-board trace buffer Up to 4.0 MB/s download speedThe J-Trace PRO software package includes: J-Flash / J-Flash SPI J-Link Unlimited Flash Breakpoints Ozone - The J-Link Debugger Monitor mode J-Link ARM RDI / RDDI Package content Cortex-M Trace Reference Board .05" 20-pin debug & trace cable .1" 20-pin ribbon cable (18 cm) USB 3.0 cable Micro USB cable Includes free software updates and 1 (one) year of Basic support. Beyond that, SEGGER's Extended Coverage gives you the option to extend hardware warranty and Basic support for one additional year (+12 months) or two additional years (+24 months). These options are only available at the time of purchase. Adding it at a later date is not possible.For additional product information, pleace visit segger.com.

From €2,980.00*

Details

8.20.00

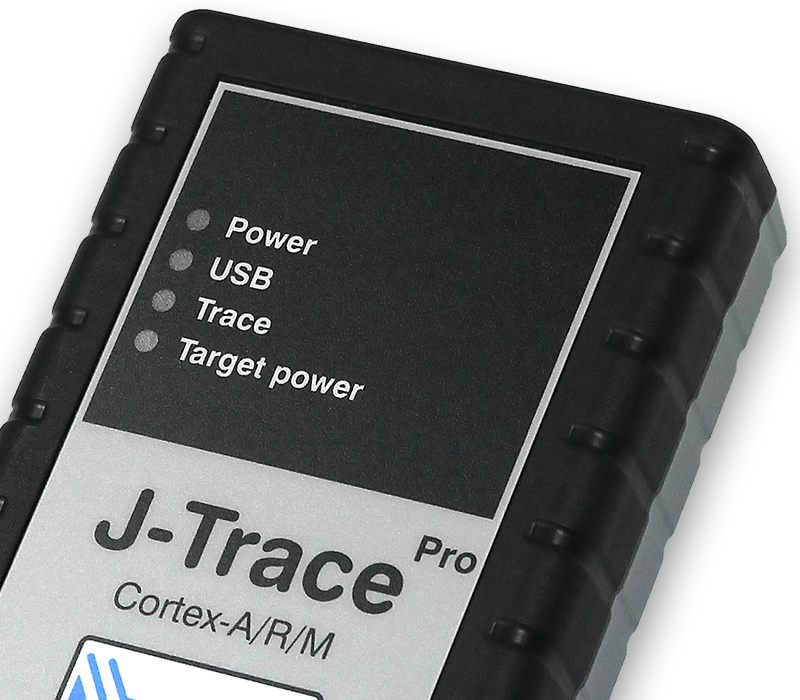

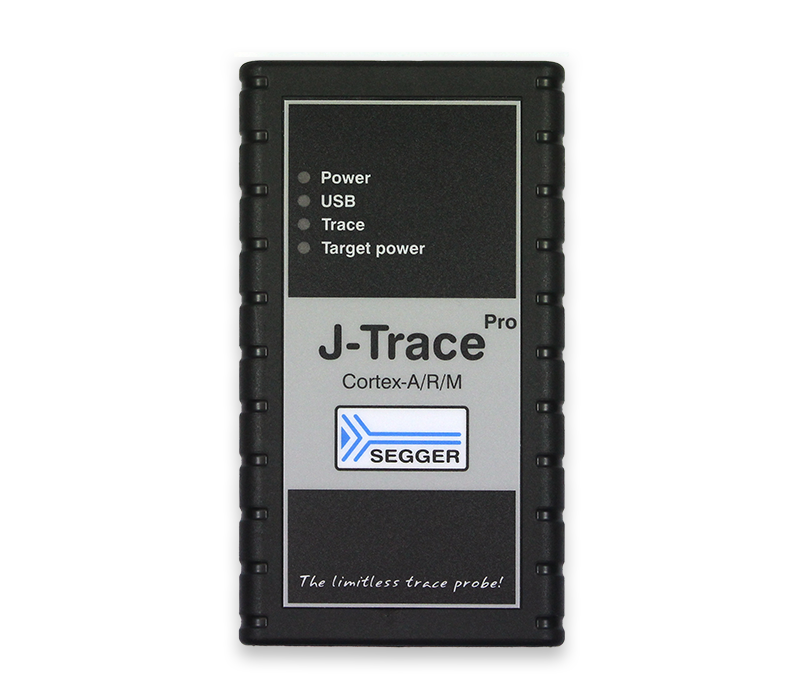

J-Trace PRO Cortex

Get the J-Trace PRO Cortex, the superspeed trace probe that provides support for Cortex-A/R/M-based microcontrollers. With its superspeed USB 3.0 interface, J-Trace PRO Cortex enables continuous streaming trace via USB with full trace clock. This lifts the limits from internal buffers, slowing data transmission to provide the insights a developer needs to optimize code.With J-Trace PRO, complete traces can be captured over long periods. This enables the recording of infrequent, hard-to-reproduce bugs. It is particularly helpful when the program flow ‘runs off the rails’ and stops in a fault state. SuperSpeed USB 3.0 driven debug probe supporting unlimited streaming trace for RISC-V devices, 64 MB on-board trace buffer. Up to 4.0 MB/s download speed Includes: Streaming trace probe with USB Superspeed interface Real-time streaming at full system clock Tune your application with live profiling Satisfy regulatory requirements with instruction-level code coverage Isolate and Identify hard-to-find code defects with unlimited trace Supports streaming trace Supports Cortex-A/R/M targets Full J-Link debug functionality Further advantagesIt also supports extended trace features, such as code coverage (so engineers have visibility over which parts of the application code have been executed) and execution profiling (providing visibility as to which instructions have been executed and how often—so hotspots can be addressed and optimization opportunities identified).Package content J-Trace PRO trace probe Cortex-M Trace Reference Board .05" 20-pin debug & trace cable .1" 20-pin ribbon cable (18 cm) USB 3.0 cable Mini USB cable Includes free software updates and 1 (one) year of Basic support. Beyond that, SEGGER's Extended Coverage gives you the option to extend hardware warranty and Basic support for one additional year (+12 months) or two additional years (+24 months). These options are only available at the time of purchase. Adding it at a later date is not possible. For additional product information, please visit segger.com.

€1,980.00*

Details

8.18.00

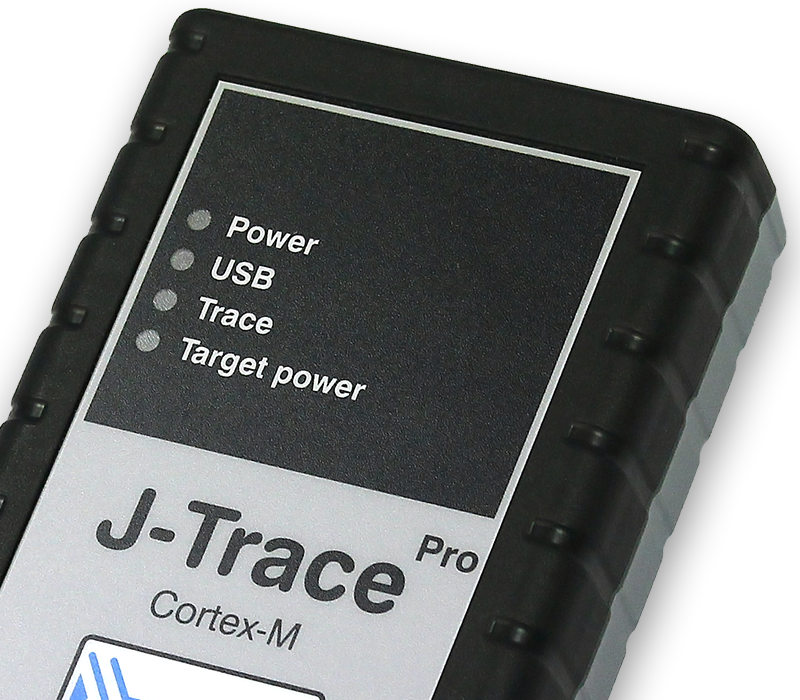

J-Trace PRO Cortex-M
