SEGGER Flasher PRO

Product information "Flasher PRO"

Get Flasher PRO, a programming tool for microcontrollers from the SEGGER Flasher family of programming tools.

Flasher PRO is built for microcontrollers (ARM7/9/11, Cortex-A/R/M or PPC core) with on-chip or external flash memory. This efficient programming tool is designed for programming flash targets with J-Flash software or stand-alone. It is cross-platform, working on Linux, Windows, and macOS.
Flasher PRO can be used as a stand-alone JTAG/SWD programmer. Just set it up, then it can be controlled without the use of a PC program. It has an Ethernet interface and supports internal and external flash devices.
Flasher PRO supports a wide range of CPU cores and an even wider range of different devices from various vendors. On this page, an overview of all supported CPU cores, as well as devices for which flash programming is supported, is given. The Flasher PRO comes with a built-in 20-pin JTAG connector, compatible with the standard 20-pin connector defined by Arm.

Further advantages
Each Flasher includes licenses to program with all supported MCUs and supports serial in target programming. It comes with free firmware updates.

Package content

Flasher PRO
20-pin, 0.1" ribbon cable
RS232 cable 1:1 female / male
USB cable

Includes free software updates and 1 (one) year of Basic support. Beyond that, SEGGER's Extended Coverage gives you the option to extend hardware warranty and Basic support for one additional year (+12 months) or two additional years (+24 months). These options are only available at the time of purchase. Adding it at a later date is not possible.

For additional product information, please visit segger.com.

Host Interface:	Ethernet, UART/RS232, USB
Programming Trigger:	Button, Flasher Hub, J-Flash, TTL, Telnet, Terminal, UART
Supported Targets:	ARM Cortex Cores, ARM legacy Cores, Microchip AVR, Microchip AVR32, Microchip PIC16, Microchip PIC32, NXP/ST PowerPC, RISC-V , Renesas M16, Renesas M32, Renesas RL78, Renesas RX, STM8, SiLabs 8051, TI MSP430
Target Interface:	(Q)SPI, 8051 C2, FINE, ICSP, IIC, ISP, JTAG, PDI, SPD, SWD, SWIM, UART, UPDI, cJTAG

Similar products

5.17.02M

Flasher PRO XL

Get the Flasher PRO XL, the SEGGER programming tool for Arm, Renesas RX and Freescale PowerPC based series of microcontrollers with either on-chip or external flash memory. After setup, this Flasher can be used as a stand-alone JTAG/SWD programmer or controlled by a PC program. It is cross-platform, working on Linux, Windows & Mac. It has an Ethernet interface and supports internal and external flash devices.Flasher PRO XL is the storage extended version of Flasher PRO. It provides 2GB of on-board storage for programming images and configurations.Further advantagesEach Flasher includes licenses to program with all supported MCUs and supports serial in target programming. It comes with free firmware updates.Package content Flasher PRO XL 20-pin, 0.1" target ribbon cable RS232 cable 1:1 female / male USB cable Includes free software updates and 1 (one) year of Basic support. Beyond that, SEGGER's Extended Coverage gives you the option to extend hardware warranty and Basic support for one additional year (+12 months) or two additional years (+24 months). These options are only available at the time of purchase. Adding it at a later date is not possible. For additional product information, please visit segger.com.

From €1,198.00*

Details

Bestseller

5.19.00M

Flasher Compact

Get Flasher Compact, the compact version of the Flasher PRO for easier integration into size limited production setups. Flasher Compact supports stand-alone programming of internal and external flash memory: once set up, it can be controlled without the use of a PC program.Thanks to its compact form factor, Flasher Compact allows for easy integration into size-constrained project setups.Further advantagesEach Flasher includes licenses to program with all supported MCUs and supports serial in target programming. It comes with free firmware updates.Package content Flasher Compact20-pin, 0.1" target ribbon cableUSB cable Includes free software updates and 1 (one) year of Basic support. Beyond that, SEGGER's Extended Coverage gives you the option to extend hardware warranty and Basic support for one additional year (+12 months) or two additional years (+24 months). These options are only available at the time of purchase. Adding it at a later date is not possible.For additional product information, please visit segger.com.

From €898.00*

Details

5.16.02M

Flasher Portable PLUS

Get Flasher Portable PLUS, the handheld Flash Programmer for on-chip and external flash memory and ARM7/9/11, Cortex-M/R/A, RX or PPC core. Flasher Portable PLUS is designed for programming flash targets with the J-Flash software or stand-alone. Programming speed typically between 30 KB/second and 1 MByte/second. Max. programming speed highly depends on target hardware and max. programming speed of the flash itself.Powered by a rechargeable Li-Ion battery, Flasher Portable PLUS doesn’t need an external power source. One battery charge supports up to 10 hours of programming. Developers can also enjoy full insights with a 1.8 inch display.Flasher Portable PLUS supports Authorized Flashing. This allows to limit the number of flash programming cycles and to protect the Flasher against non-authorized access in case of external production. The push button interface allows easy selection between multiple images/configurations stored on Flasher.Further advantagesFlasher Portable PLUS supports a wide range of CPU cores and an even wider range of different devices from various vendors. This page provides an overview of all supported CPU cores as well as devices for which flash programming is supported.Package content Flasher Portable PLUS 20-pin, 0.1" ribbon cable USB cable Includes free software updates and 1 (one) year of Basic support. Beyond that, SEGGER's Extended Coverage gives you the option to extend hardware warranty and Basic support for one additional year (+12 months) or two additional years (+24 months). These options are only available at the time of purchase. Adding it at a later date is not possible. Please note: For customization options, please contact us.For additional product information, please visit segger.com.

From €998.00*

Details

5.07.01M

Flasher ARM

Get Flasher ARM, part of the Flasher family of reliable, high-speed production programmers from SEGGER. Flasher ARM is a programming tool designed for Arm core-based microcontrollers with on-chip and/or external flash memory. Once set up, it can be used as a stand-alone JTAG/SWD programmer, without the need of a PC program. Cross-platform, it works on Linux, Windows, and macOS.Flasher ARM supports serial target programming, has an Ethernet interface and 128 MB memory for the storage of the target program. This Flasher supports a wide range of internal and external flash devices.Further advantagesFlasher ARM supports Authorized Flashing, letting users limit the number of flash programming cycle. This protects the Flasher against non-authorized access in the case of external production. Flasher ARM supports a wide range of CPU cores and an even wider range of different devices from various vendors. Find an overview of all supported CPU cores here and devices here.Package content Flasher ARM20-pin, 0.1" target ribbon cableRS232 cable 1:1 female / maleUSB cable Includes free software updates and 1 (one) year of Basic support. Beyond that, SEGGER's Extended Coverage gives you the option to extend hardware warranty and Basic support for one additional year (+12 months) or two additional years (+24 months). These options are only available at the time of purchase. Adding it at a later date is not possible. For additional product information, please visit segger.com.

From €798.00*

Details

5.20.01

Flasher Secure

Get the Flasher Secure, a mass production programming system that protects the vendor’s IP – regardless of production site. Part of the Flasher family of programming tools from SEGGER. Provides full control over programming processes at contract manufacturers and other environments. Flasher Secure supports vendor-specific trusted firmware features to ensure end-to-end encryption, authentication, and confidentiality covering the whole process including the 'last mile'. Further advantages Flasher Secure means secured firmware. Since most modern products have a huge amount of intellectual property in their firmware, protecting this property is important. The Flasher Secure system uses authentication algorithms to make sure that only authorized boot loaders and firmware are used. Package content Flasher Secure 20-pin, 0.1" ribbon cableRS232 cable 1:1 female / maleUSB cable Please note: Setting up the complete infrastructure requires the Flasher Secure Server (5.20.20), which is available upon request. You can find detailed pricing information here.For additional product information, please visit segger.com.

€1,980.00*

Details

Flasher PRO

Suitable accessories

Software add-ons

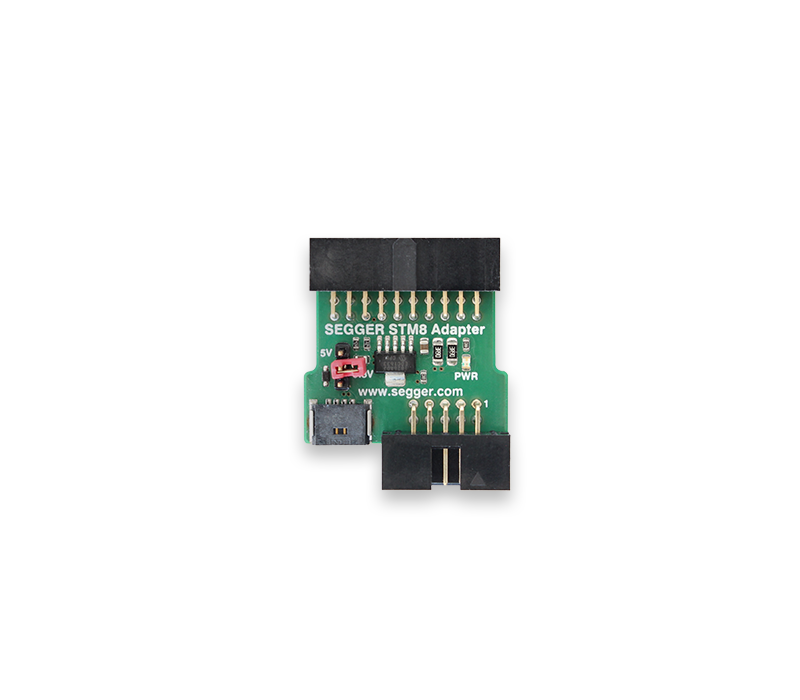

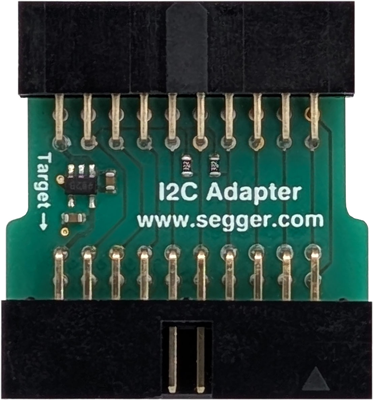

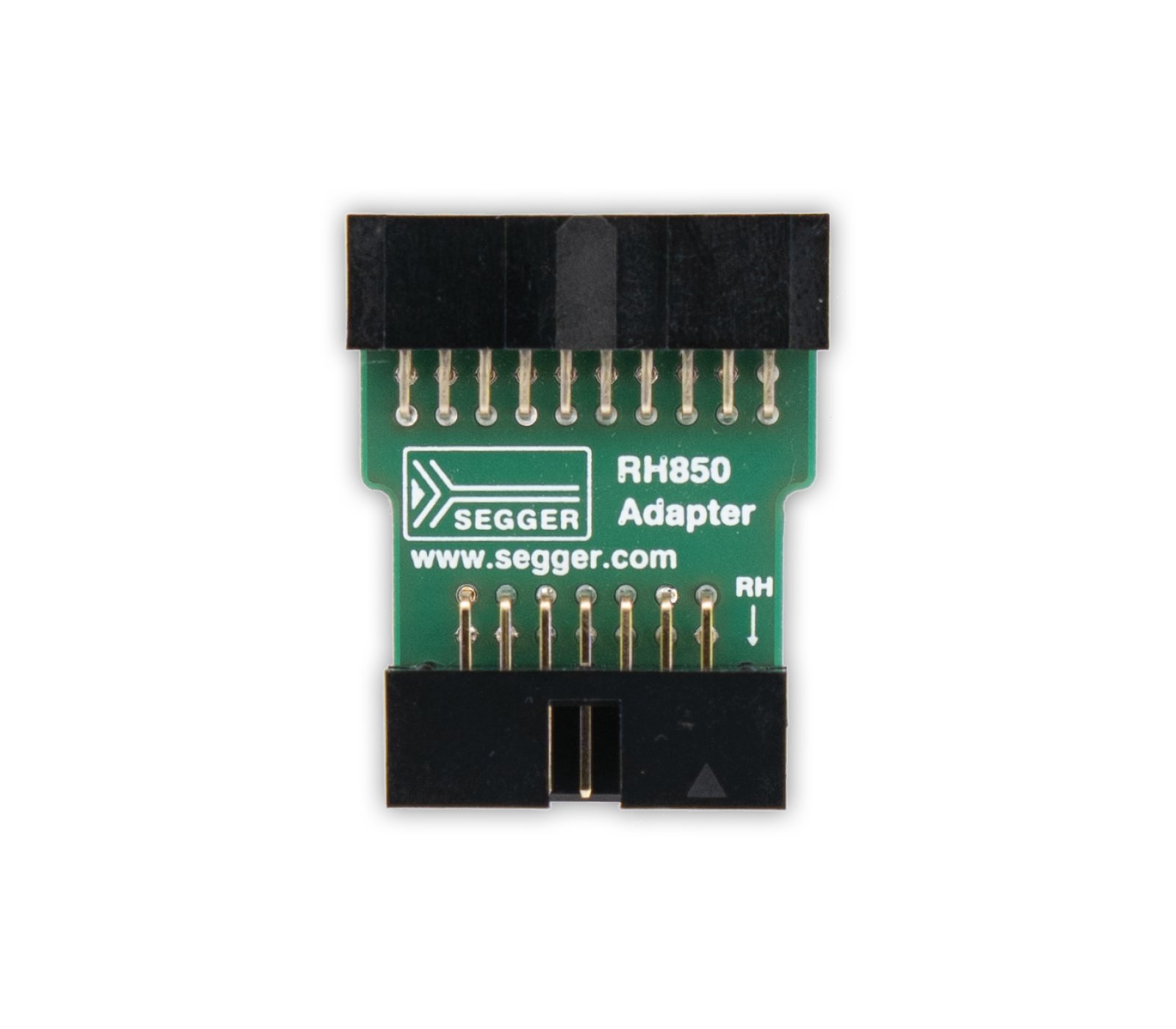

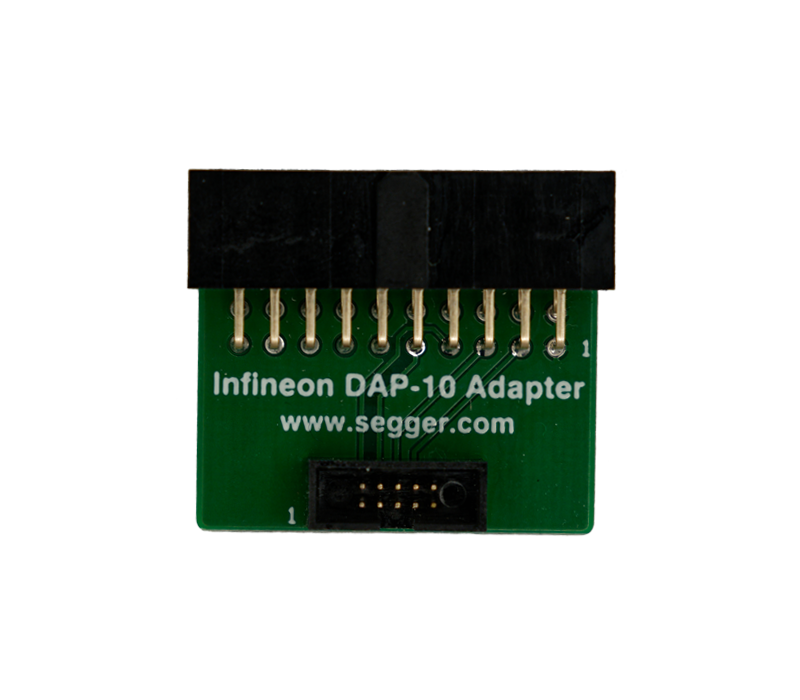

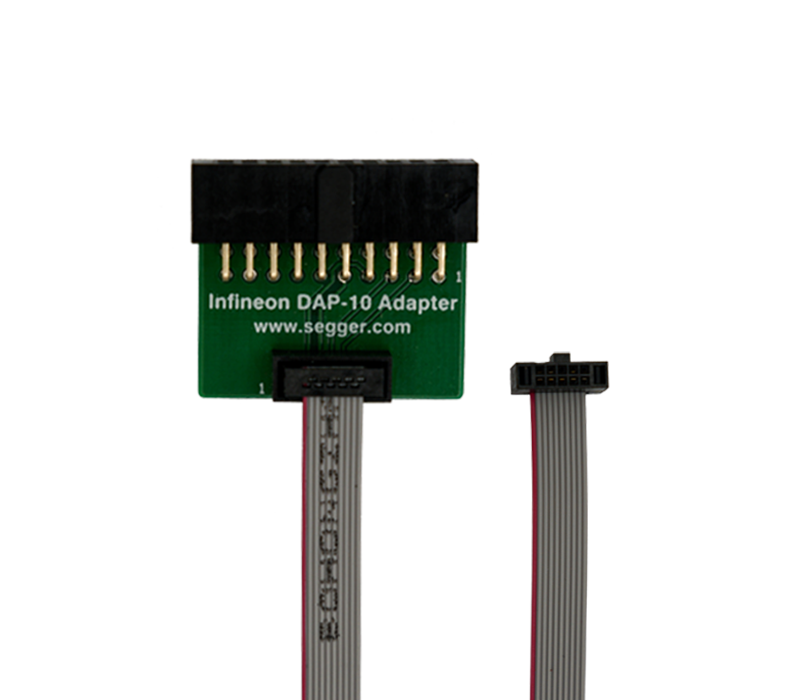

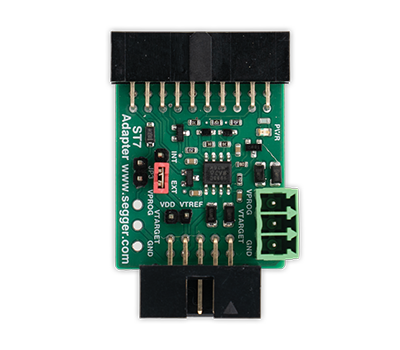

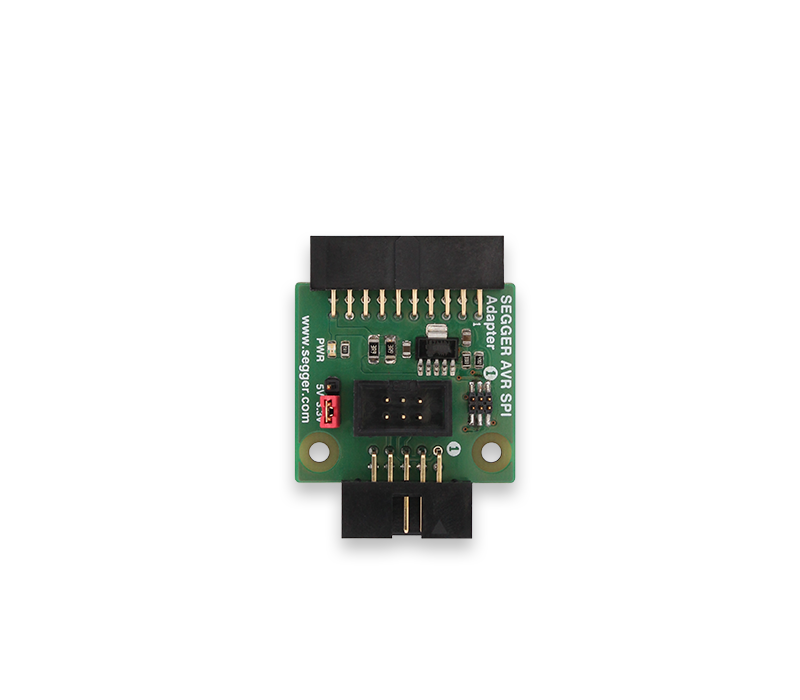

Adapters
