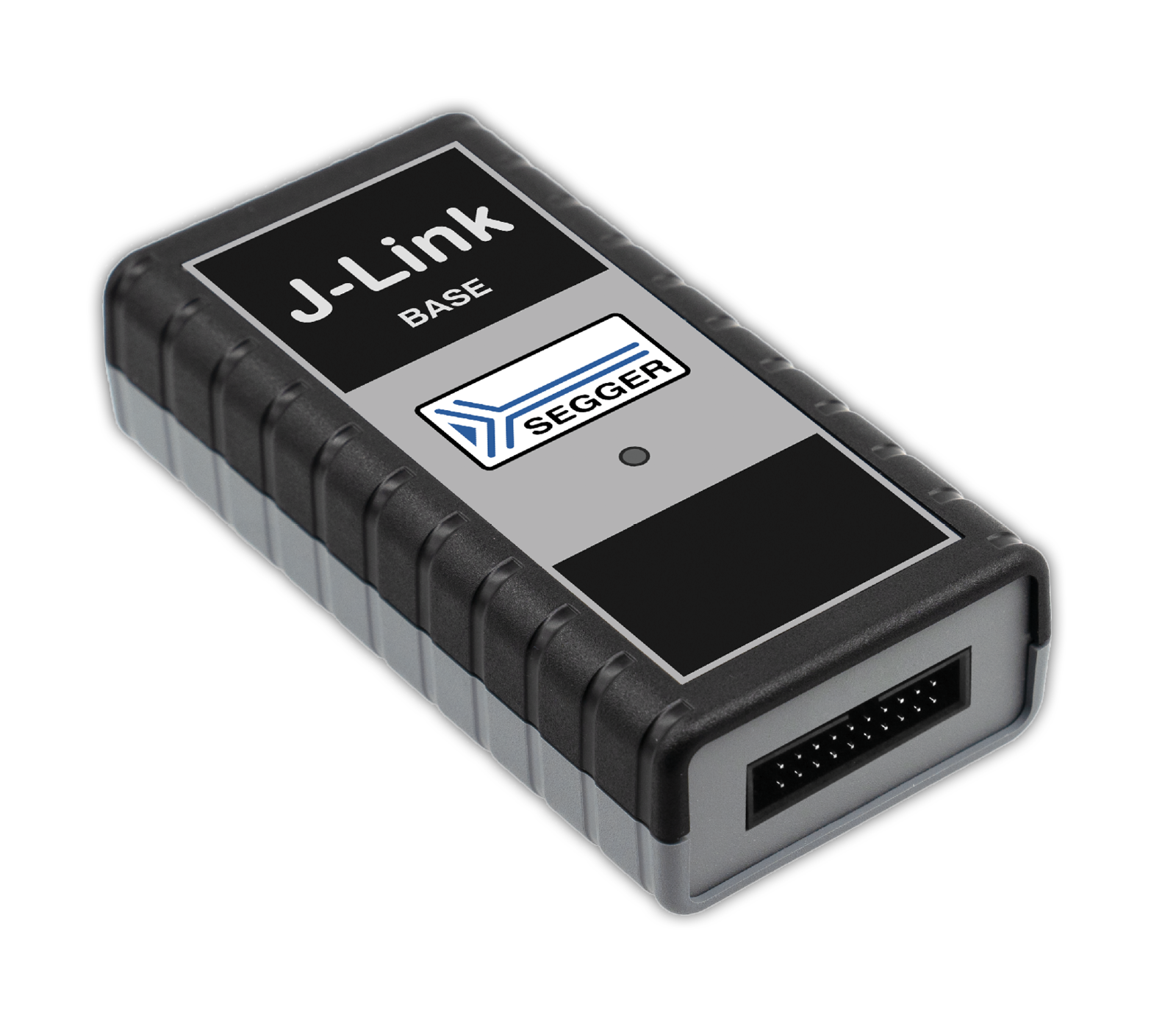

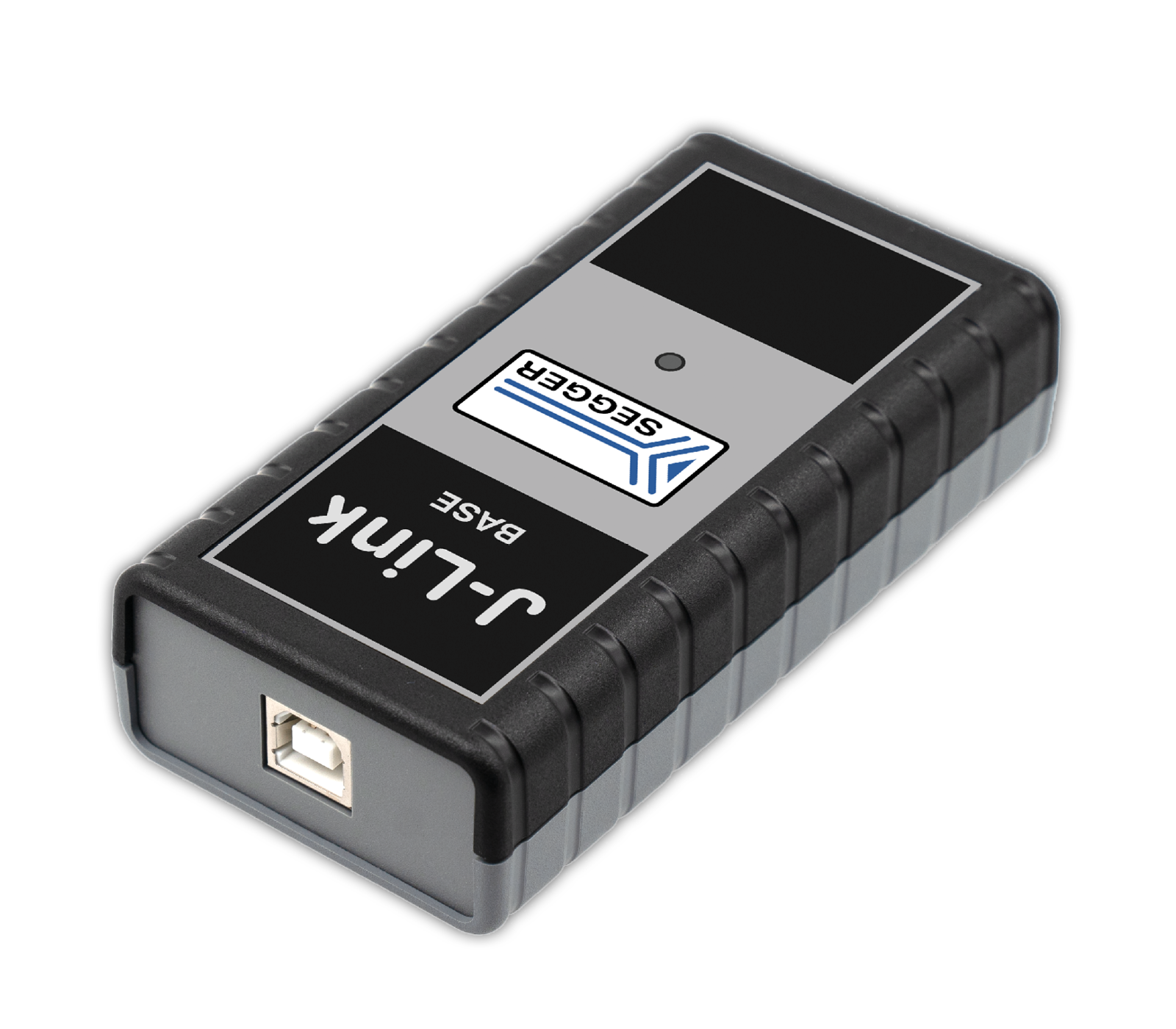

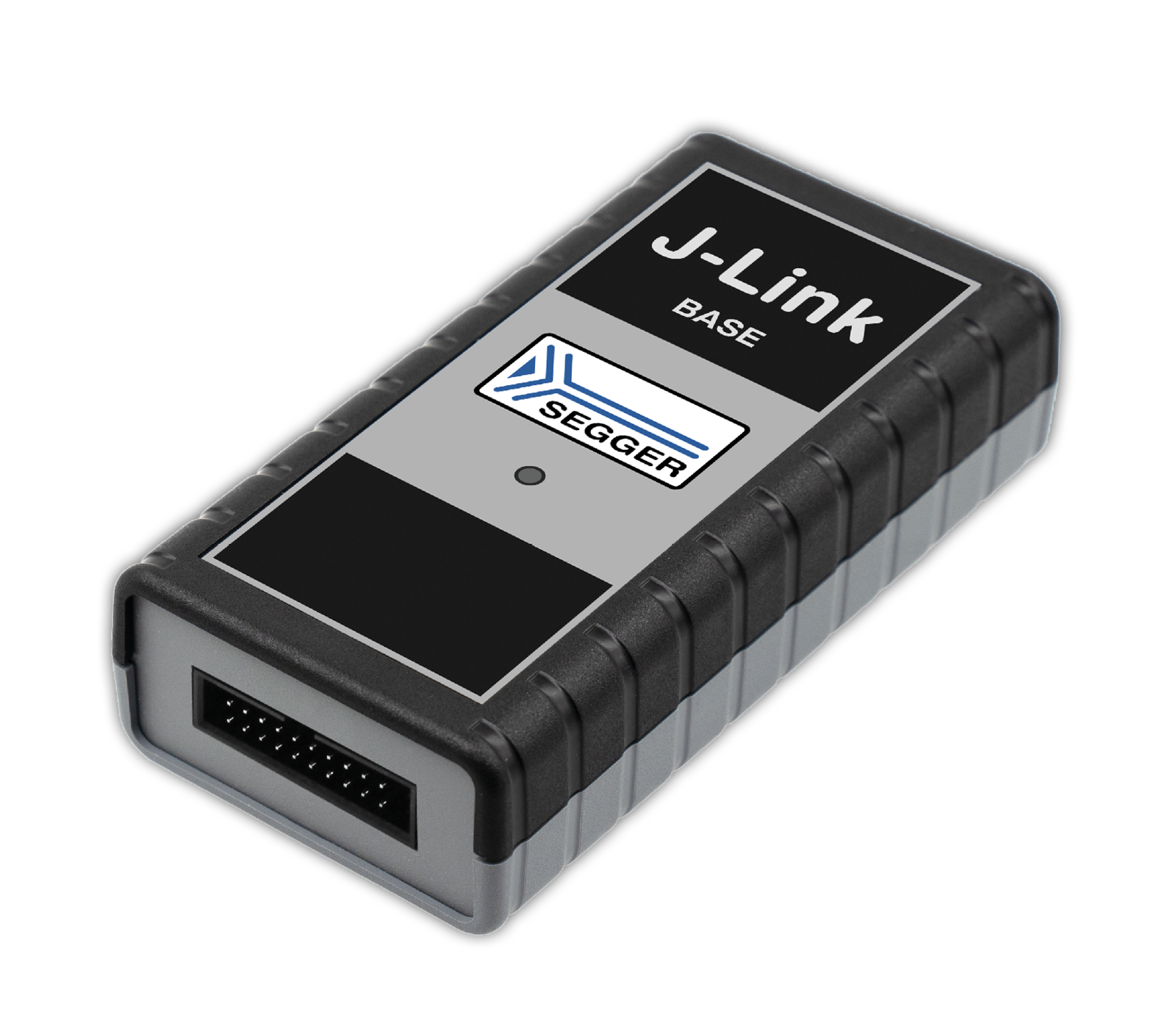

SEGGER J-Link BASE Classic

Product information "J-Link BASE Classic"

Get the J-Link BASE – the BASE version of the market leading debug probe family.

Other top models of the J-Link family are J-Link PRO, PLUS & ULTRA+. Powered by a USB, J-Link BASE supports a wide range of CPU cores and microcontrollers. Used worldwide for development and production (flash programming), it is based on a 32-bit RISC CPU and can communicate at high speed with supported target CPUs.

J-Link debug probes are supported by all major IDEs. These include GDB-based IDEs and SEGGER Embedded Studio. Take a look here to view the complete list of Supported IDEs.

Further advantages
J-Link BASE has built-in VCOM functionality. It is also available in a compact version: the J-Link BASE Compact.
Including all models, more than 500,000 J-Links have been shipped so far, making J-Link probably the most popular debug probe for ARM cores and the de-facto standard.

Package content

J-Link Base debug probe
USB cable
.1" 20-pin ribbon cable (18 cm)

Includes free software updates and 1 (one) year of Basic support. Beyond that, SEGGER's Extended Coverage gives you the option to extend hardware warranty and Basic support for one additional year (+12 months) or two additional years (+24 months). These options are only available at the time of purchase. Adding it at a later date is not possible.

For additional product information, please visit segger.com.

Host Interface:	USB
Software Features:	Flash Download, GDB Server, Real-Time Transfer (RTT)
Supported Targets:	ARM Cortex Cores, ARM legacy Cores, Microchip PIC32, RISC-V , Renesas RX, SiLabs 8051
Target Interface:	FINE, ICSP, JTAG, SWD, SWO, cJTAG
Target Interface Speed:	Standard (1 MB/s)
Trace Interface:	ETB Trace
