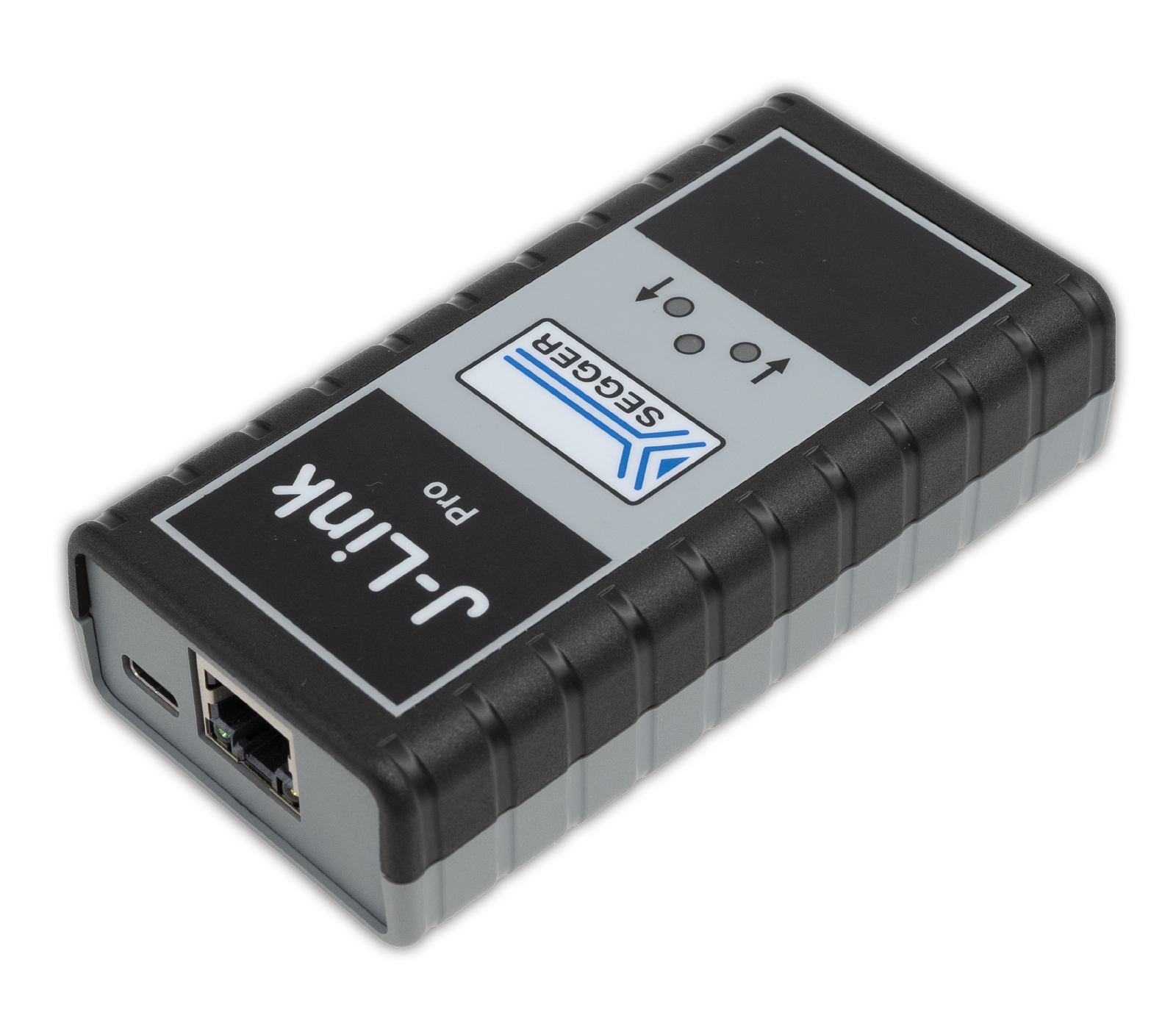

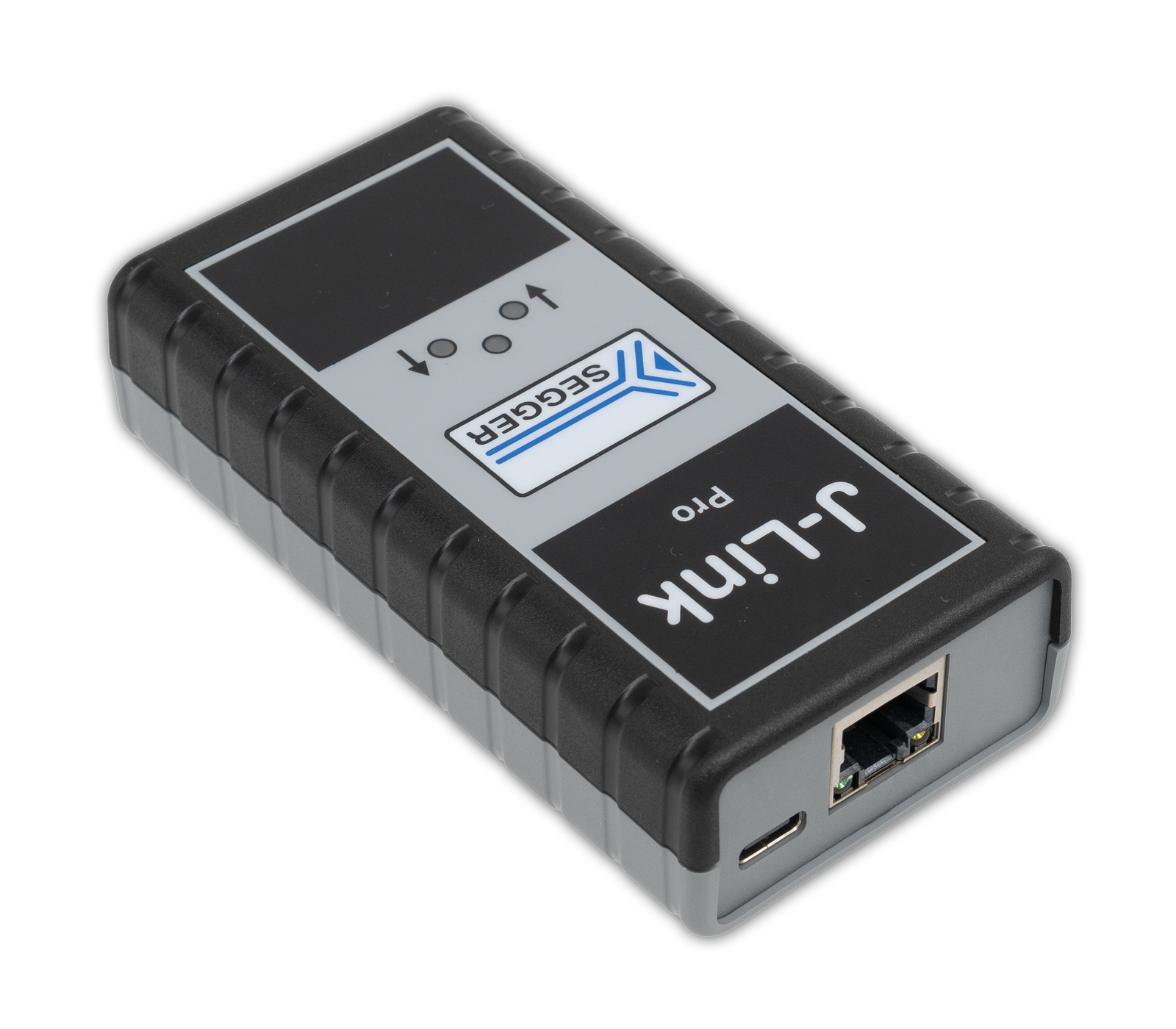

J-Link PRO

J-Link PRO is SEGGER's versatile JTAG/SWD programming and debug probe with USB and Ethernet interfaces.

€998.00*

Available, delivery time: 1-2 days

Support options
Part number: 8.12.00

Suitable accessories

Adapters
PPC 14-Pin Adapter

€49.00*

Available, delivery time: 1-2 days

50-Mil 10-Pin Patch Adapter

€49.00*

Available, delivery time: 1-2 days

Test Farm Power Adapter

€98.00*

Available, delivery time: 1-2 days

Microchip LVP Adapter

€49.00*

Available, delivery time: 1-2 days

Programming Voltage Adapter

€98.00*

Available, delivery time: 1-2 days

STDC 14 Adapter

€49.00*

Available, delivery time: 1-2 days

2mm Adapter

€49.00*

Available, delivery time: 1-2 days

MIPI-60 Adapter

€98.00*

Available, delivery time: 1-2 days

Measurement+Patch Adapter

€98.00*

Available, delivery time: 1-2 days

10-pin Needle Adapter

€98.00*

Available, delivery time: 1-2 days

14-Pin TI Adapter

€49.00*

Available, delivery time: 1-2 days

Xilinx Adapter

€49.00*

Available, delivery time: 1-2 days

Right Angle (RAFF) Adapter

€49.00*

Available, delivery time: 1-2 days

SiFive-ARTY Adapter

€49.00*

Available, delivery time: 1-2 days

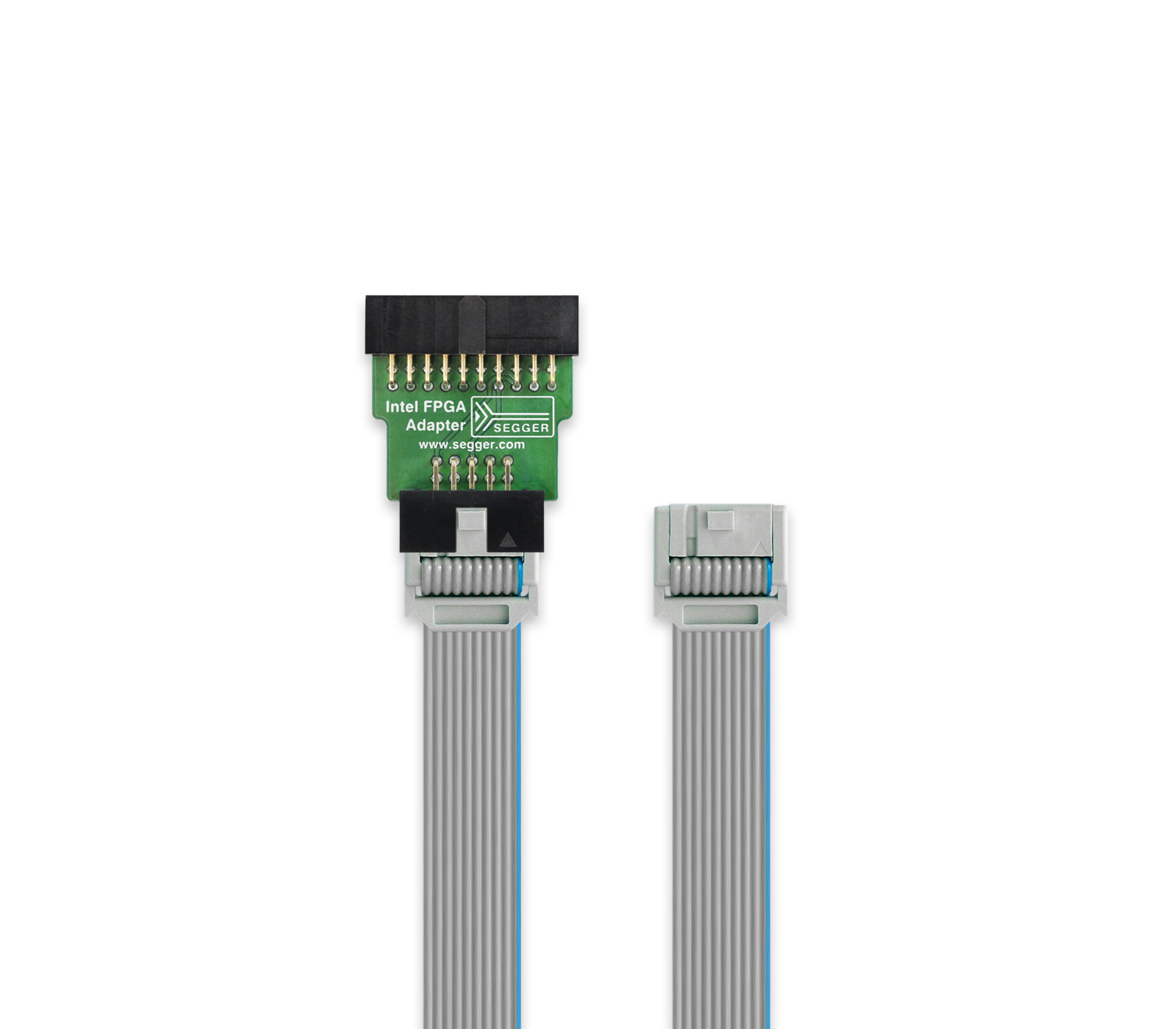

Intel FPGA Adapter

€49.00*

Available, delivery time: 1-2 days

9-Pin Cortex-M Adapter

€32.00*

Available, delivery time: 1-2 days

Target Supply Adapter

€68.00*

Available, delivery time: 1-2 days

ARM-14 Adapter

€68.00*

Available, delivery time: 1-2 days

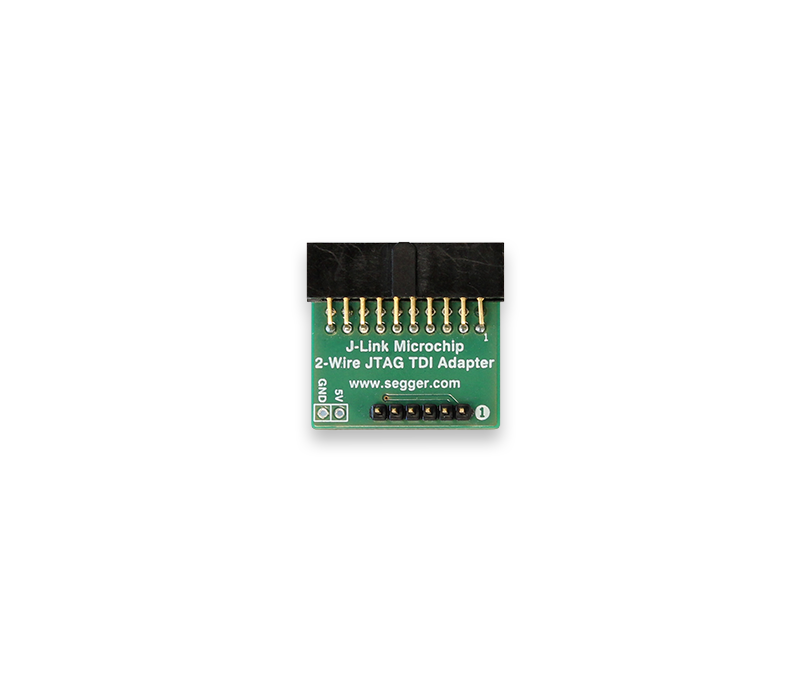

Microchip 2-Wire JTAG TDI Adapter

€49.00*

Available, delivery time: 1-2 days

TI-CTI-20 Adapter

€68.00*

Available, delivery time: 1-2 days

Flying Wire Adapter

€68.00*

Available, delivery time: 1-2 days

J-Link Mictor 38 Adapter

€148.00*

Available, delivery time: 1-2 days

5V Target Supply Adapter

€98.00*

Available, delivery time: 1-2 days

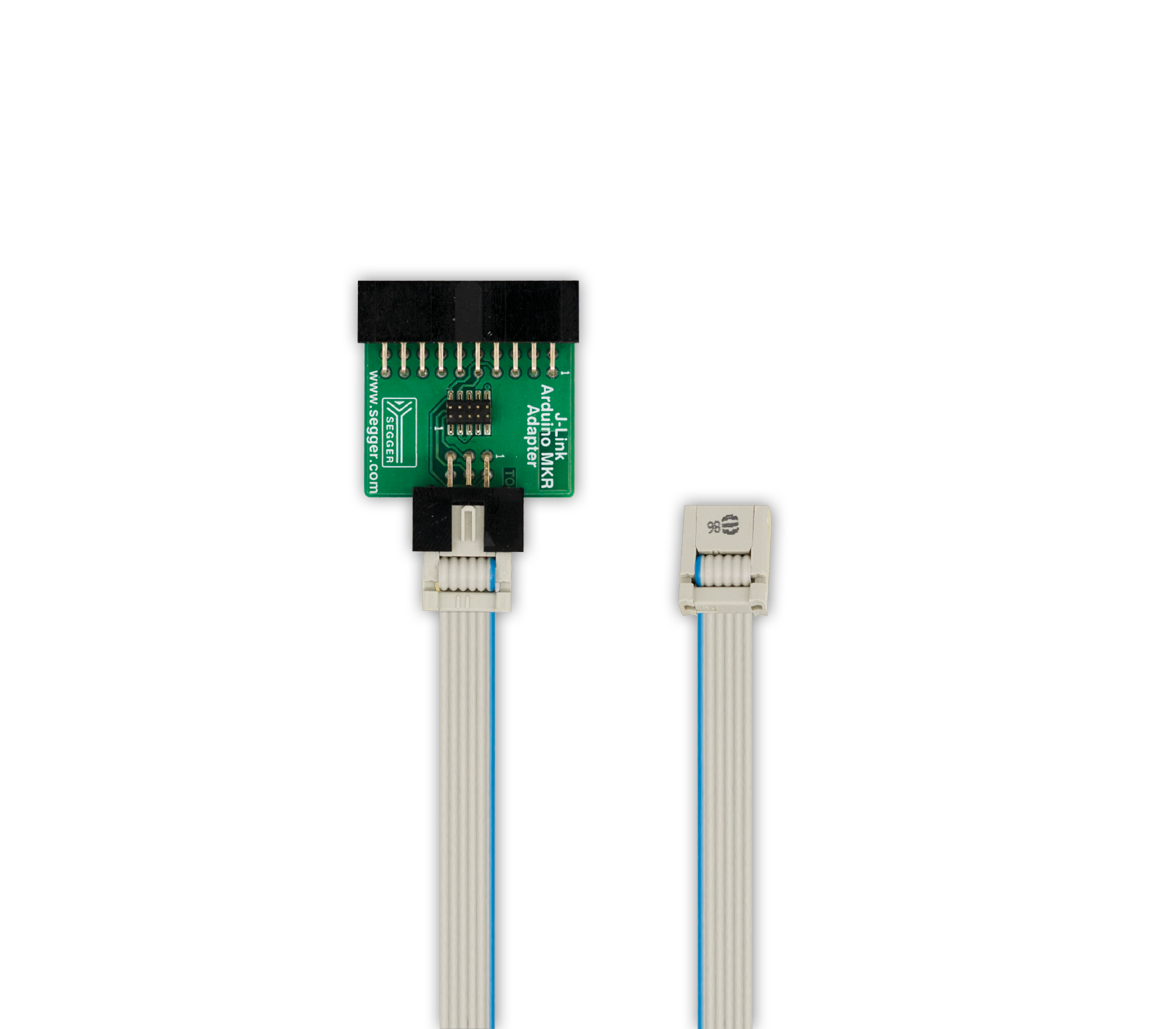

Arduino MKR Adapter

€32.00*

Available, delivery time: 1-2 days

RX FINE Adapter

€49.00*

Available, delivery time: 1-2 days

Relay Adapter

€198.00*

Available, delivery time: 1-2 days

Signal Smoothing Adapter

€49.00*

Available, delivery time: 1-2 days

Supply Adapter

€68.00*

Available, delivery time: 1-2 days

RX Adapter

€98.00*

Available, delivery time: 1-2 days

6-pin Needle Adapter

€98.00*

Available, delivery time: 1-2 days

19-Pin Cortex-M Adapter

€32.00*

Available, delivery time: 1-2 days

SiLabs C2 Adapter

€68.00*

Available, delivery time: 1-2 days

Isolators
JTAG Isolator

€198.00*

Available, delivery time: 1-2 days

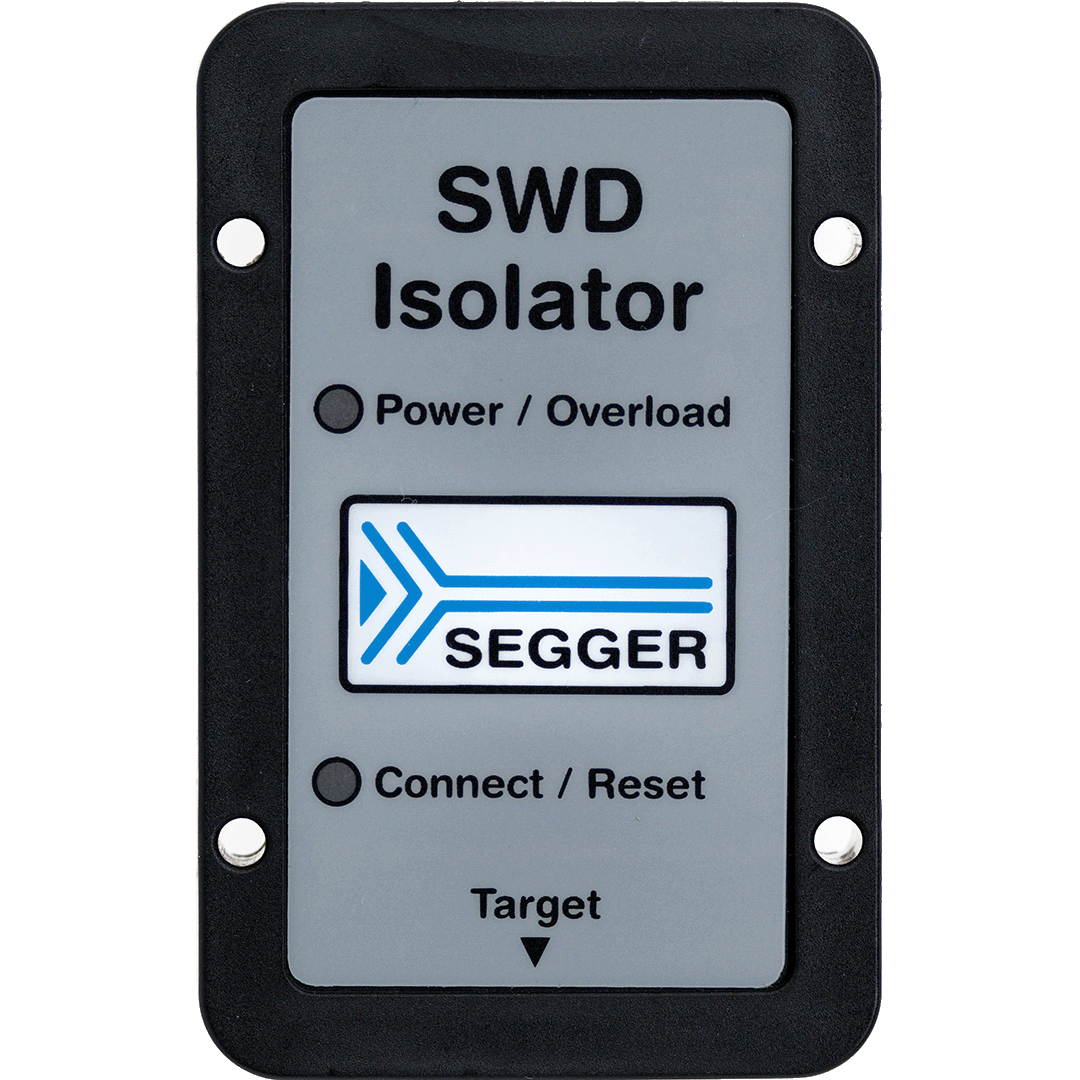

SWD Isolator

€198.00*

Available, delivery time: 1-2 days

USB Isolator

€148.00*

Available, delivery time: 1-2 days

Software add-ons
J-Link DSK

€1,980.00*

Available, delivery time: 1-2 days

J-Link DSK – extension

€980.00*

Available, delivery time: 1-2 days

J-Link SDK

€1,980.00*

Available, delivery time: 1-2 days

J-Link SDK – extension

€980.00*

Available, delivery time: 1-2 days

SystemView
SystemView

€1,480.00*

Available, delivery time: 1-2 days

Flasher
Flasher PRO

€998.00*

Available, delivery time: 1-2 days

Product information "J-Link PRO"

Get the J-Link PRO, a refined version of the standard J-Link.

Working “out-of-the-box”, it uses DHCP per default. Includes an Ethernet interface in addition to the USB interface, meaning the debug probe can be used far away from the PC, either over a hardwired or wireless network. Easily check hardware status thanks to two additional LEDs. Connects via Ethernet or USB to the host. Cross-platform, it runs on Windows, Linux & macOS.


Further advantages

J-Link PRO includes a web interface (web server) for easy TCP/IP configuration and integrated licenses for unlimited breakpoints in flash memory, RDI/RDDI & J-Flash. There is also built-in VCOM functionality, supporting a broad range of CPUs and microcontrollers.
J-Link debug probes are supported by all major IDEs including Eclipse, GDB-based IDEs and SEGGER Embedded Studio. Find a complete list of Supported IDEs here.


Package content

  • J-Link PRO debug probe
  • USB cable
  • .1" 20-pin ribbon cable (18 cm)


Includes free software updates and 1 (one) year of Basic support. Beyond that, SEGGER's Extended Coverage gives you the option to extend hardware warranty and Basic support for one additional year (+12 months) or two additional years (+24 months). These options are only available at the time of purchase. Adding it at a later date is not possible.


For additional product information, please visit segger.com.

Host Interface: Ethernet, USB
Software Features: Flash Download, GDB Server, J-Flash / J-Flash SPI, Ozone, RDDI, RDI, Real-Time Transfer (RTT), Unlimited Flash Breakpoints
Supported Targets: ARM Cortex Cores, ARM legacy Cores, Microchip PIC32, RISC-V , Renesas RX, SiLabs 8051
Target Interface: FINE, ICSP, JTAG, SWD, SWO, cJTAG
Target Interface Speed: High (4 MB/s)
Trace Interface: ETB Trace

Similar products

8.12.28M
J-Link PRO PoE
Get the J-Link PRO PoE, the specialized high-end debug probe for test farms J-Link PRO PoE features a PoE-enabled Ethernet interface as an alternative to the USB connection, specifically to reduce the size of a cable harness in test farms. Easily check hardware status thanks to two additional LEDs. Connects via Ethernet or USB to the host. Cross-platform, it runs on Windows, Linux, and macOS. Further advantagesJ-Link PRO PoE includes a web interface (web server) for easy TCP/IP configuration and integrated licenses for unlimited breakpoints in flash memory, RDI/RDDI & Flash. There is also built-in VCOM functionality, supporting a broad range of CPUs and microcontrollers.J-Link debug probes are supported by all major IDEs including Eclipse, GDB-based IDEs and SEGGER Embedded Studio. Find a complete list of Supported IDEs here. Package content J-Link PRO PoE debug probe USB cable .1" 20-pin ribbon cable (18 cm) Includes free software updates and 1 (one) year of Basic support. Beyond that, SEGGER's Extended Coverage gives you the option to extend hardware warranty and Basic support for one additional year (+12 months) or two additional years (+24 months). These options are only available at the time of purchase. Adding it at a later date is not possible.For additional product information, please visit segger.com.

From €1,198.00*
8.14.28M
J-Link WiFi
Get the J-Link WiFi, a JTAG/SWD debug probe with WiFi interface. Communicates at high speed (up to 15MHz) with supported target CPUs. Need a wireless debug interface? Then J-Link WiFi is the perfect solution – for example if the target is moving or needs to be shielded from the environment. Powered by USB, it uses the same source of power as the target device. All major IDEs including Eclipse, GDB-based IDEs and SEGGER Embedded Studio support J-Link debug probes. Take a look at the complete list of Supported IDEs. With over 500,000 J-Link shipped so far, it is probably the most popular debug probe for ARM cores and the de-facto standard. Further advantagesJ-Link WiFi includes a web interface making for easy TCP/IP configuration (built-in webserver). There are also integrated licenses for unlimited breakpoints in flash memory, RDI/RDDI, and J-Flash. It additionally provides J-Link debugging for mobile applications as well as built-in VCOM functionality, supporting a broad range of microcontrollers & CPUs.Package content J-Link WiFi debug probe USB cable .1" 20-pin ribbon cable (18 cm) Includes free software updates and 1 (one) year of Basic support. Beyond that, SEGGER's Extended Coverage gives you the option to extend hardware warranty and Basic support for one additional year (+12 months) or two additional years (+24 months). These options are only available at the time of purchase. Adding it at a later date is not possible. For additional product information, please visit segger.com.

From €998.00*
8.16.28M

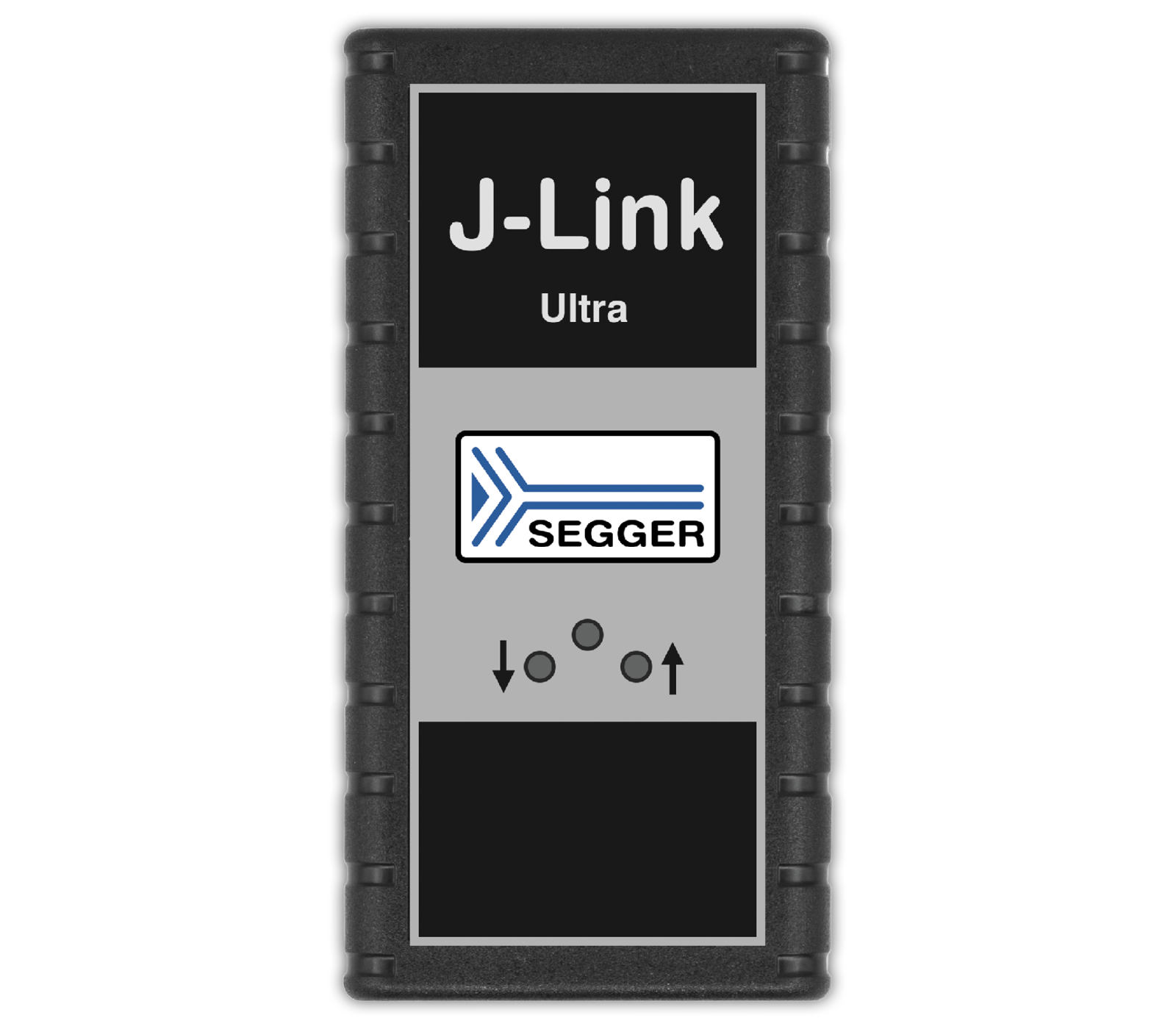

J-Link ULTRA+
