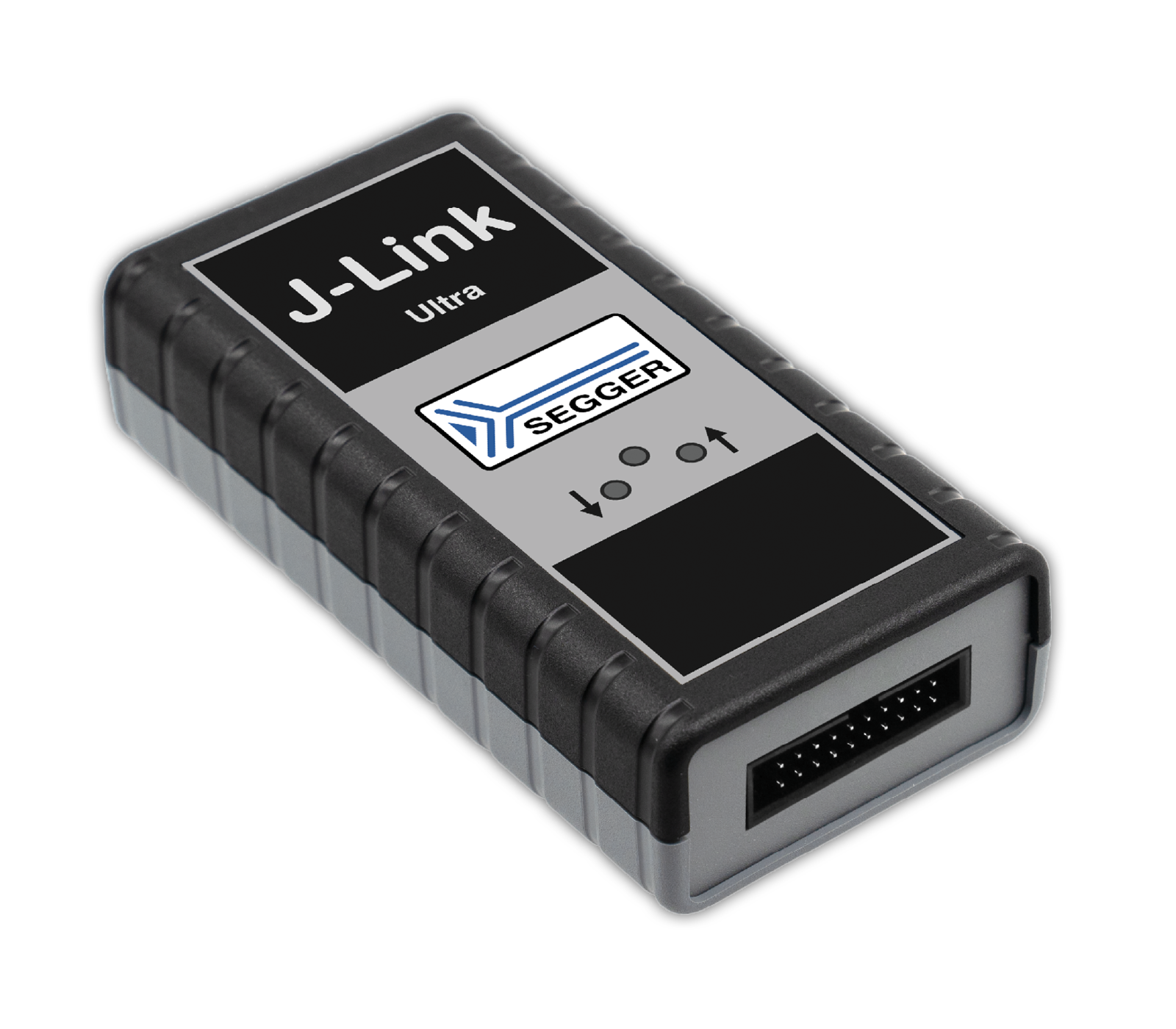

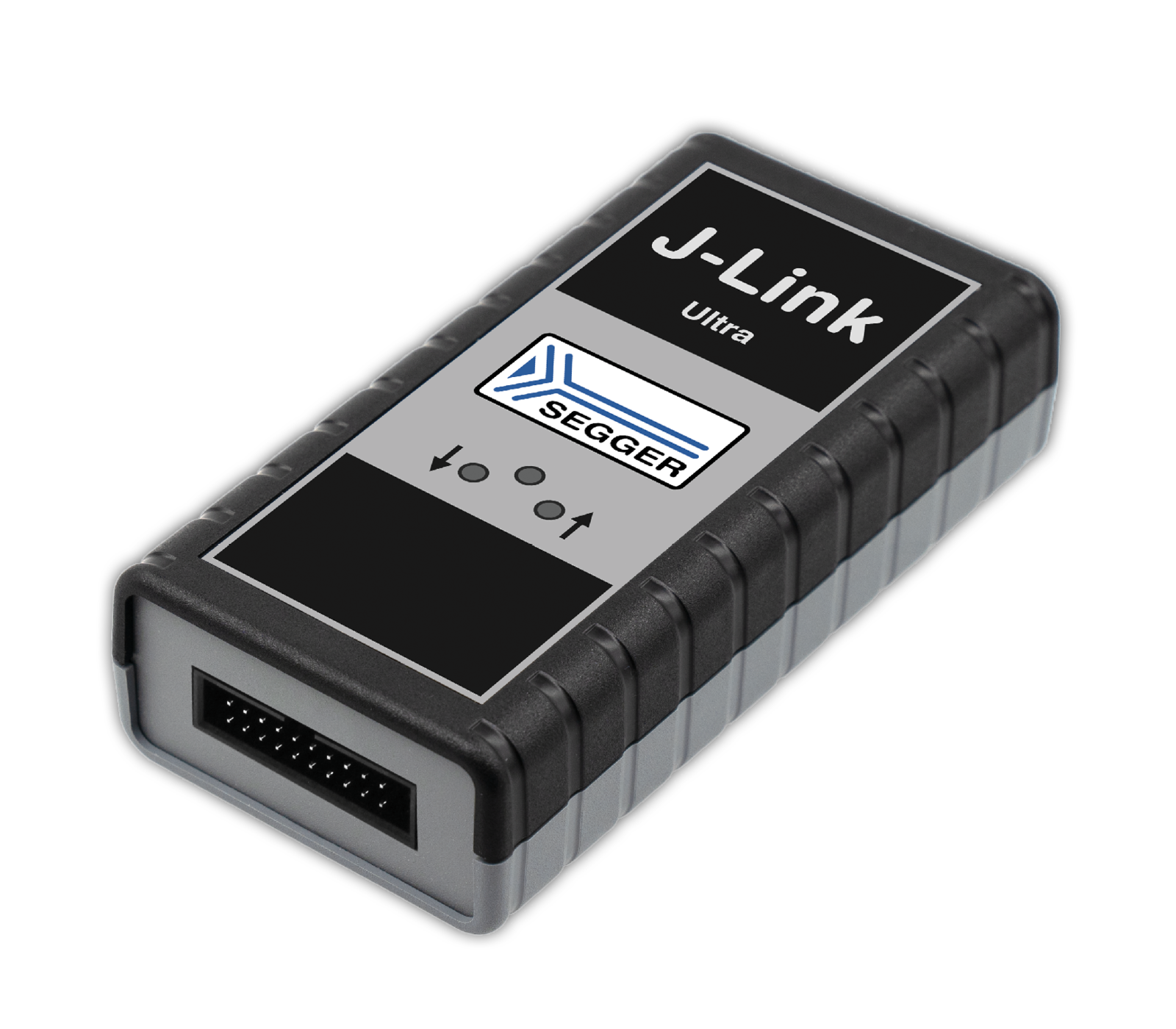

SEGGER J-Link ULTRA+

Product information "J-Link ULTRA+"

Get the J-Link ULTRA+, an ultra-fast debug probe for JTAG/SWD and superset of J-Link PLUS.

100% compatible with J-Link PLUS – and even faster! Make the switch and enjoy faster download speeds of up to 3 Mbyte/s. Comes with integrated licenses for:

Unlimited breakpoints in flash memory, Ozone & J-Flash
Free software updates

Also includes: ARM Remote Debug Interface (RDI), remote GDB server for the GNU Project Debugger (GDB Server), Flash Loaders, and software to program internal and external flash of your microcontroller (J-Flash). The J-Link debug probes are supported by all major IDEs: Eclipse, GDB-based IDEs and SEGGER Embedded Studio. For a complete list, please refer to Supported IDEs.

Further advantages
J-Link Ultra+ comes built-in VCOM functionality. Supports direct download into flash memory & RAM. Includes a broad range of supported CPUs and microcontrollers. No power supply needed; driven and powered by USB.

Package content

J-Link ULTRA+ debug probe
USB cable
.1" 20-pin ribbon cable (18 cm)

Includes free software updates and 1 (one) year of Basic support. Beyond that, SEGGER's Extended Coverage gives you the option to extend hardware warranty and Basic support for one additional year (+12 months) or two additional years (+24 months). These options are only available at the time of purchase. Adding it at a later date is not possible.

For additional product information, please visit segger.com.

Host Interface:	USB
Software Features:	Flash Download, GDB Server, J-Flash / J-Flash SPI, Ozone, RDDI, RDI, Real-Time Transfer (RTT), Unlimited Flash Breakpoints
Supported Targets:	ARM Cortex Cores, ARM legacy Cores, Microchip PIC32, RISC-V , Renesas RX, SiLabs 8051
Target Interface:	FINE, ICSP, JTAG, SWD, SWO, cJTAG
Target Interface Speed:	High (4 MB/s)
Trace Interface:	ETB Trace
