SEGGER J-Link PLUS Classic

Product information "J-Link PLUS Classic"

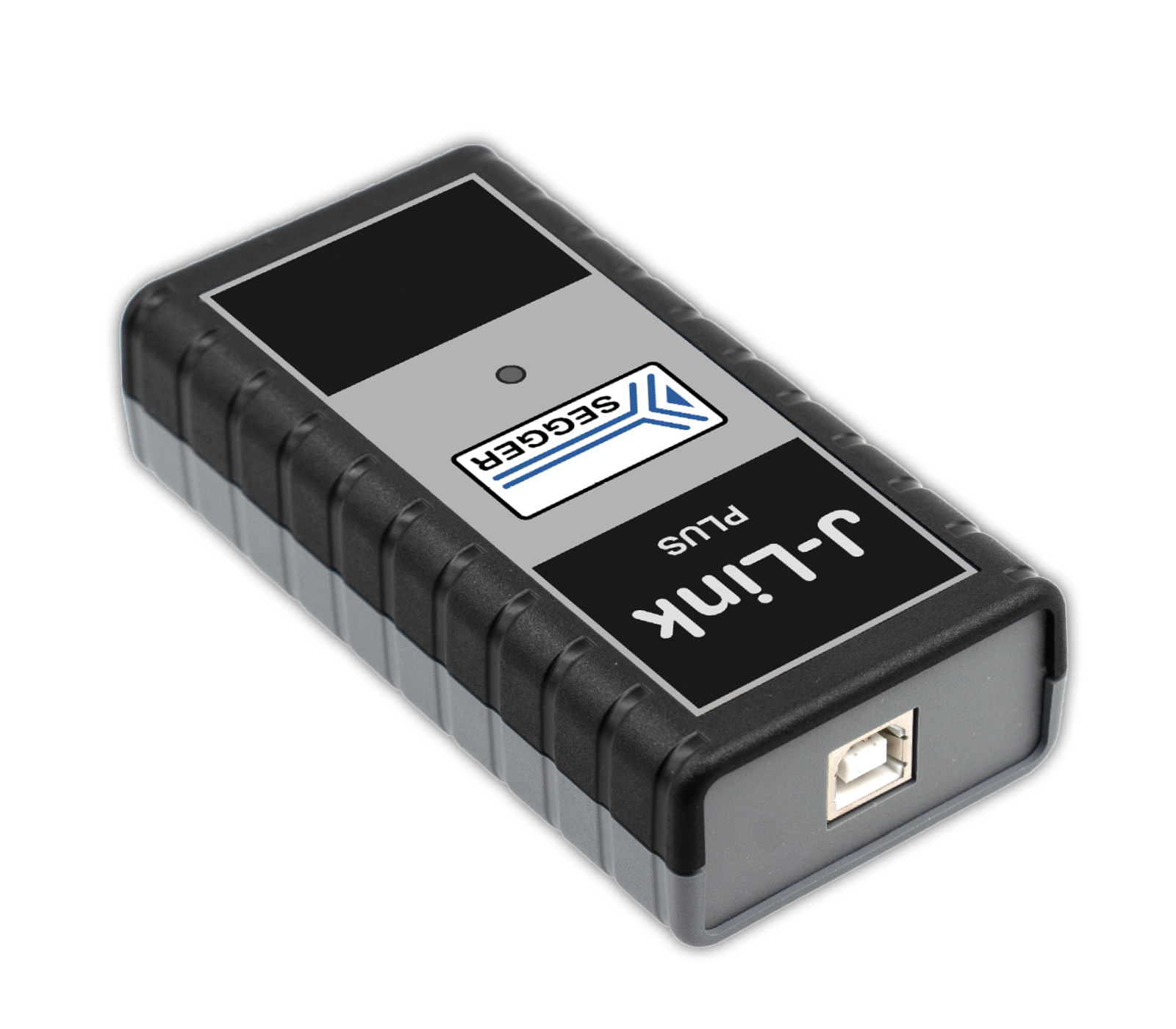

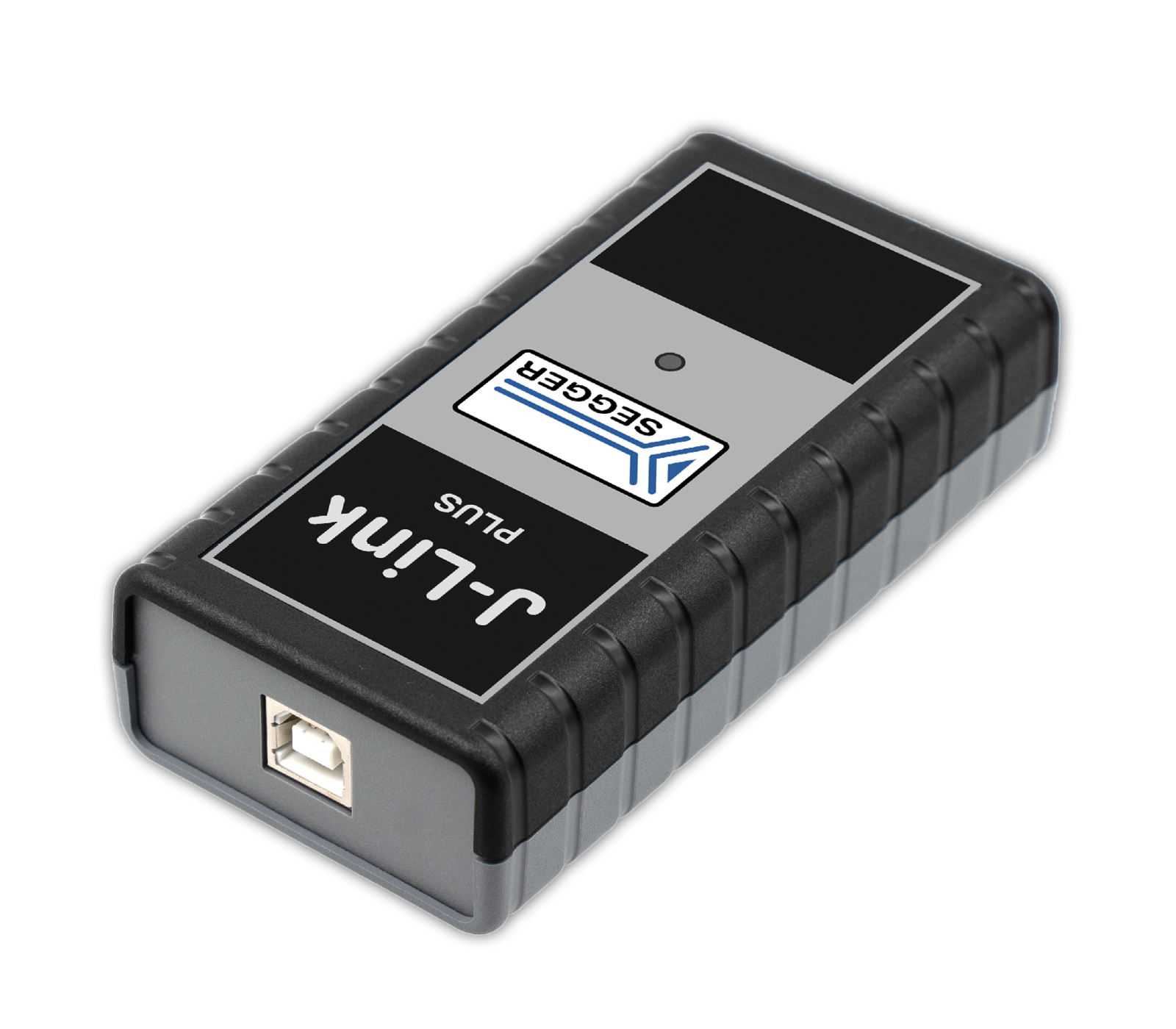

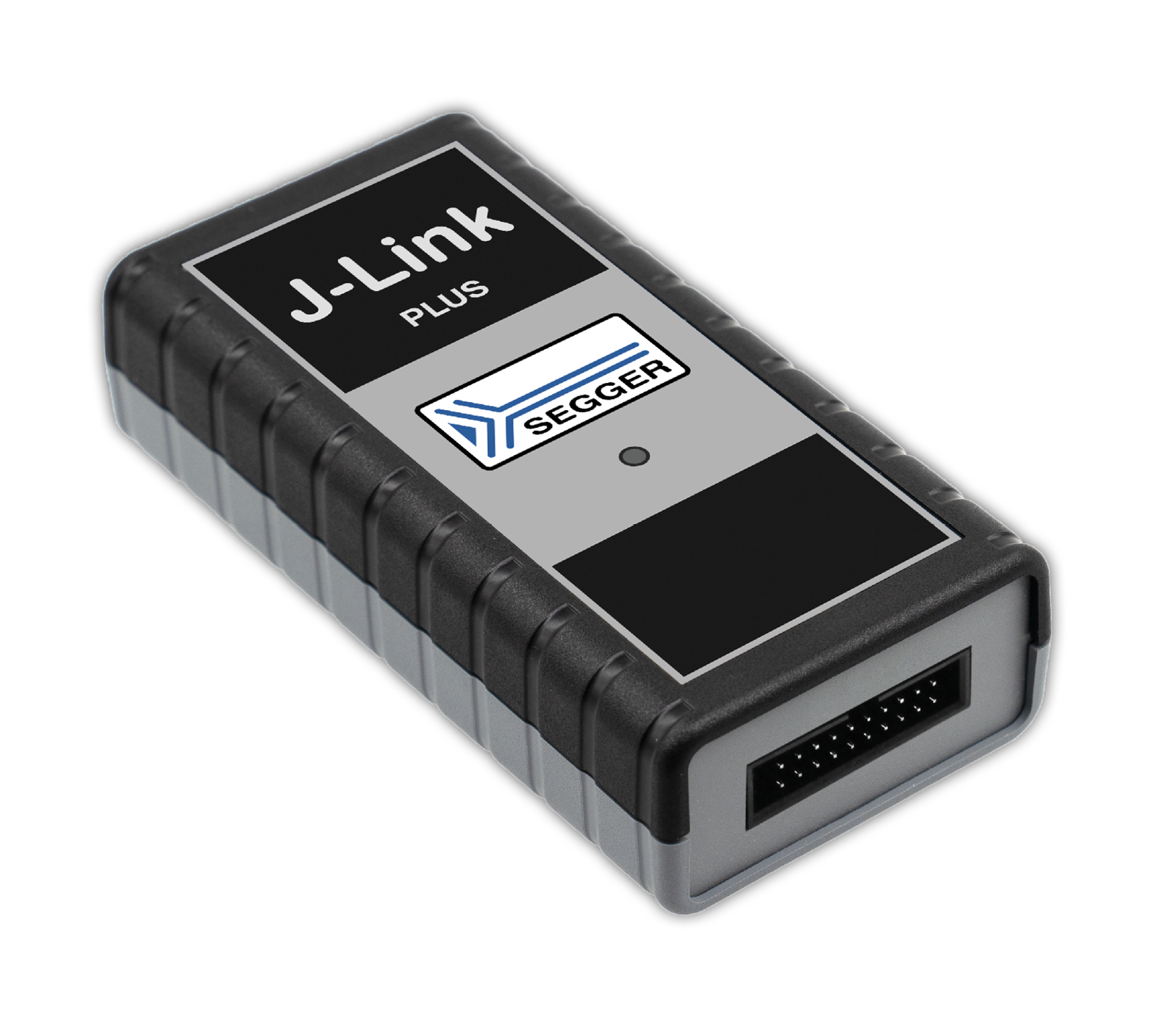

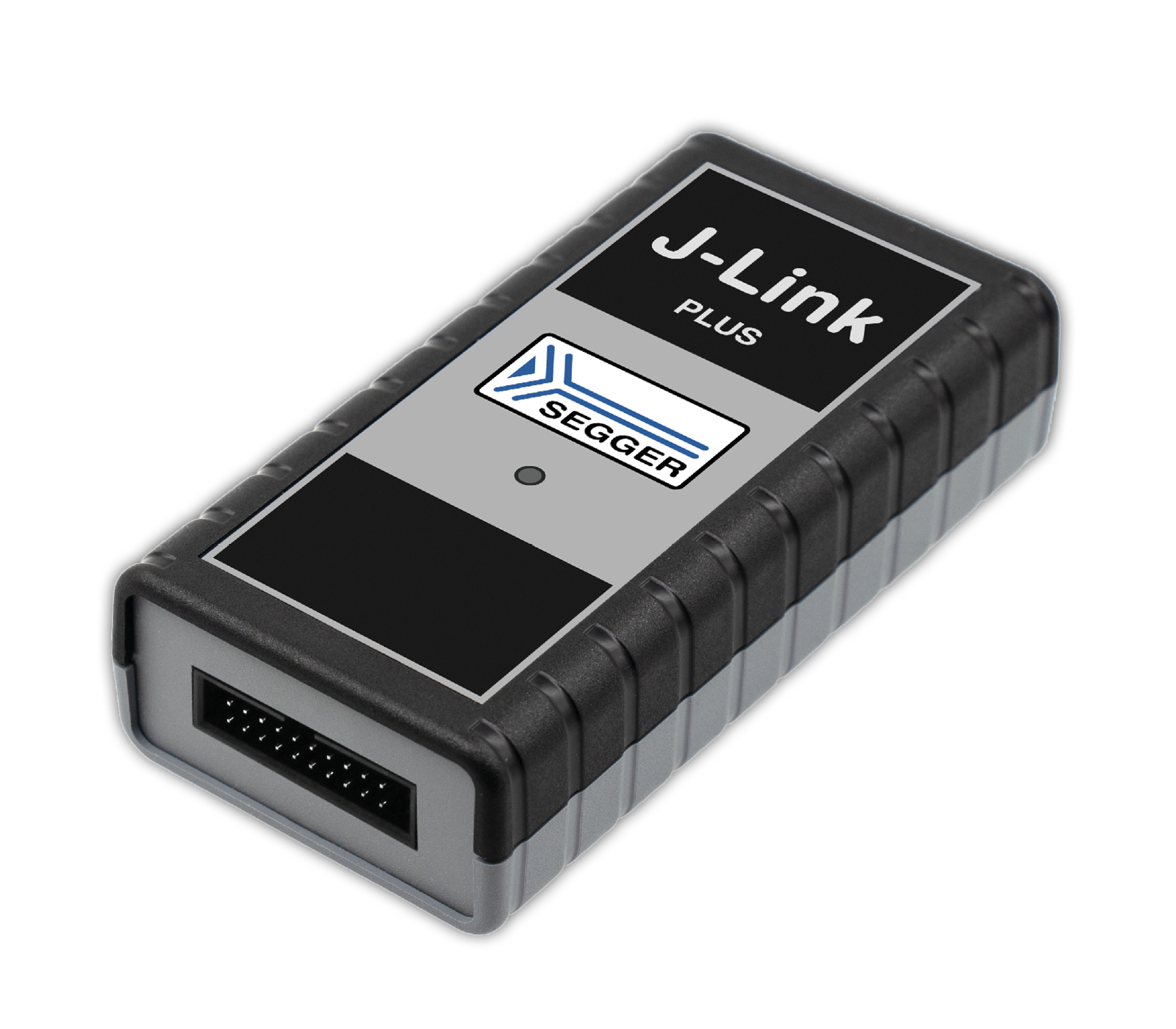

Get the J-Link PLUS, a high-speed USB 2.0 driven JTAG/SWD debug probe with USB interface.

Based on a 32-bit RISC CPU, communicates at high speed with supported target CPUs. Supports a large number of CPU cores and microcontrollers.
All major IDEs including Eclipse & GDB-based IDEs support J-Link debug probes. So does SEGGER Embedded Studio. With 500,00 J-Links shipped so far, it is the most popular debug probe for ARM cores and the de-facto standard.

Further advantages
J-Link PLUS has built-in VCOM functionality, with integrated licenses for unlimited breakpoints in flash memory, RDI/RDDI & J-Flash. Direct download into RAM & flash memory is also supported. It is available in two form factors: J-Link PLUS & J-Link PLUS Compact (functions identical).

Package content

J-Link PLUS debug probe
USB cable
.1" 20-pin ribbon cable (18 cm)

Includes free software updates and 1 (one) year of Basic support. Beyond that, SEGGER's Extended Coverage gives you the option to extend hardware warranty and Basic support for one additional year (+12 months) or two additional years (+24 months). These options are only available at the time of purchase. Adding it at a later date is not possible.

For additional product infromation, please visit segger.com.

Host Interface:	USB
Software Features:	Flash Download, GDB Server, J-Flash / J-Flash SPI, Ozone, RDDI, RDI, Real-Time Transfer (RTT), Unlimited Flash Breakpoints
Supported Targets:	ARM Cortex Cores, ARM legacy Cores, Microchip PIC32, RISC-V , Renesas RX, SiLabs 8051
Target Interface:	FINE, ICSP, JTAG, SWD, SWO, cJTAG
Target Interface Speed:	Standard (1 MB/s)
Trace Interface:	ETB Trace
